Removal [10/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE TIMING CHAIN COVER ASSEMBLY
Refer to REMOVAL [08/2015 - ]

SET NO. 1 CYLINDER TO TDC/COMPRESSION

Temporarily install the pulley set bolt.

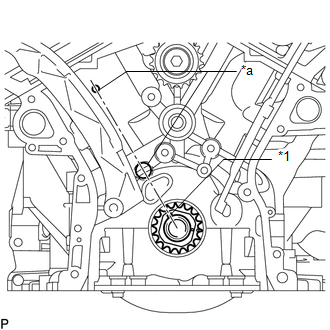

Set the crankshaft pulley set key to the RH block bore center mark (TDC/compression).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Crankshaft Pulley Set Key
*a	Center Mark

Set the crankshaft pulley set key to the RH block bore center mark (TDC/compression). If not, turn the crankshaft 1 revolution (360°) and align the timing marks as above.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Timing Mark

REMOVE NO. 1 CHAIN TENSIONER ASSEMBLY
Refer to PROCEDURE - Step 42
REMOVE CHAIN TENSIONER SLIPPER
Refer to PROCEDURE - Step 43
REMOVE CHAIN SUB-ASSEMBLY
Refer to PROCEDURE - Step 44

REMOVE CAMSHAFT TIMING GEARS AND NO. 2 CHAIN (for Bank 1)

While raising the No. 2 chain tensioner assembly, insert a pin of 1.0 mm (0.0394 in.) diameter into the hole to hold the No. 2 chain tensioner assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Pin
*b	Plunger
*c	Push

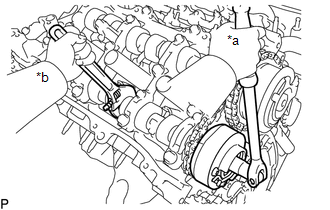

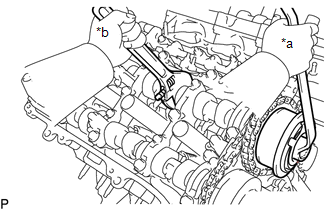

Using a wrench to hold the hexagonal portion of each camshaft, loosen the camshaft timing gear bolt of the camshaft timing gear assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Turn
*b	Hold

NOTE:

Be careful not to damage the cylinder head with the wrench.
Do not loosen the other bolts. If any of the bolts is loosened, replace the camshaft timing gear assembly and/or the camshaft timing exhaust gear assembly with a new one.

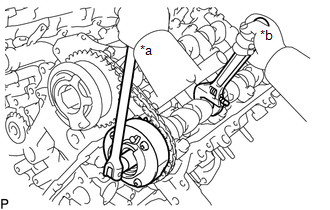

Using a wrench to hold the hexagonal portion of each camshaft, loosen the camshaft timing gear bolt of the camshaft timing exhaust gear assembly RH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Turn
*b	Hold

NOTE:

Be careful not to damage the cylinder head with the wrench.
Do not loosen the other bolts. If any of the bolts is loosened, replace the camshaft timing gear assembly and/or the camshaft timing exhaust gear assembly with a new one.

Remove the 2 bolts and the camshaft timing gear assembly together with the No. 2 chain.

REMOVE NO. 2 CHAIN TENSIONER ASSEMBLY

Remove the bolt and No. 2 chain tensioner assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE CAMSHAFT BEARING CAP (for Bank 1)

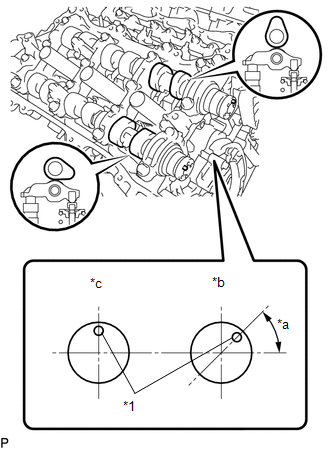

Check that the camshafts are positioned as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Knock Pin
*a	45°
*b	IN
*c	EX

Uniformly loosen and remove the 9 bolts in several steps and in the sequence shown in the illustration.

Fig 1: Camshaft Bearing Cap (For Bank 1) Loosening Sequence
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Uniformly loosen and remove the 15 bolts in several steps and in the sequence shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Uniformly loosen the bolts while keeping the camshaft level.

REMOVE FUEL PUMP LIFTER HOUSING

Remove the fuel pump lifter housing.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE CAMSHAFT
1. Remove the camshaft from the camshaft housing sub-assembly RH.
REMOVE NO. 2 CAMSHAFT
1. Remove the No. 2 camshaft from the camshaft housing sub-assembly RH.

REMOVE CAMSHAFT HOUSING SUB-ASSEMBLY RH

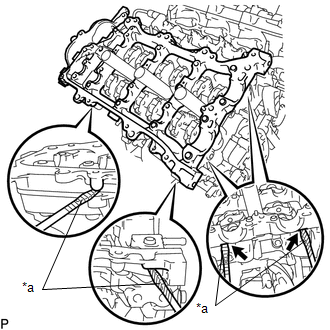

Remove the camshaft housing RH by prying between the cylinder head and camshaft housing RH with a screwdriver.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protective Tape

NOTE:

Be careful not to damage the contact surfaces of the cylinder head and camshaft housing RH.

HINT:

Tape the screwdriver tip before use.

REMOVE CAMSHAFT TIMING GEARS AND NO. 2 CHAIN (for Bank 2)

While pushing down the No. 3 chain tensioner assembly, insert a pin of 1.0 mm (0.0394 in.) diameter into the hole to hold the No. 3 chain tensioner assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Pin
*b	Plunger
*c	Push

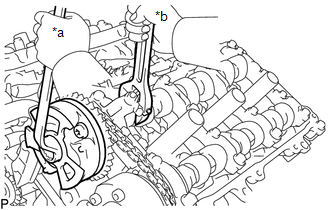

Using a wrench to hold the hexagonal portion of each camshaft sub-assembly No. 3, loosen the camshaft timing gear bolt of the camshaft timing gear assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Turn
*b	Hold

NOTE:

Be careful not to damage the cylinder head with the wrench.
Do not loosen the other bolts. If any of the bolts is loosened, replace the camshaft timing gear assembly and/or the camshaft timing exhaust gear assembly LH with a new one.

Using a wrench to hold the hexagonal portion of each camshaft sub-assembly No. 4, loosen the camshaft timing gear bolt of the camshaft timing exhaust gear assembly LH.

*a	Turn
*b	Hold

NOTE:

Be careful not to damage the cylinder head with the wrench.
Do not loosen the other bolts. If any of the bolts is loosened, replace the camshaft timing gear assembly and/or the camshaft timing exhaust gear assembly LH with a new one.

Remove the 2 bolts and the camshaft timing gear together with the No. 2 chain sub-assembly.

REMOVE NO. 3 CHAIN TENSIONER ASSEMBLY

Remove the bolt and No. 3 chain tensioner assembly.

REMOVE CAMSHAFT BEARING CAP (for Bank 2)

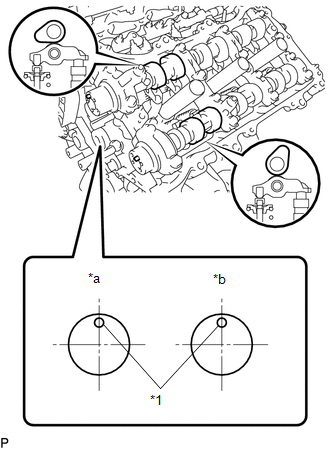

Check that the camshafts are positioned as shown in the illustration.

*1	Knock Pin
*a	IN
*b	EX

Uniformly loosen and remove the 8 bolts in several steps and in the sequence shown in the illustration.

Fig 2: Camshaft Bearing Cap (For Bank 2) Loosening Sequence
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

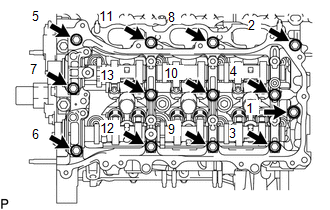

Uniformly loosen and remove the 13 bolts in several steps and in the sequence shown in the illustration.

NOTE:

Uniformly loosen the bolts while keeping the camshaft level.

Remove the 5 camshaft bearing caps.

REMOVE NO. 3 CAMSHAFT SUB-ASSEMBLY
1. Remove the No. 3 camshaft sub-assembly from the camshaft housing sub-assembly LH.
REMOVE NO. 4 CAMSHAFT SUB-ASSEMBLY
1. Remove the No. 4 camshaft sub-assembly from the camshaft housing sub-assembly LH.

REMOVE CAMSHAFT HOUSING SUB-ASSEMBLY LH

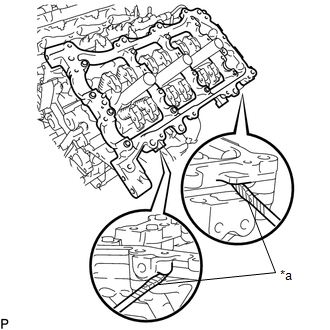

Remove the camshaft housing sub-assembly LH by prying between the cylinder head LH and camshaft housing sub-assembly LH with a screwdriver.

*a	Protective Tape

NOTE:

Be careful not to damage the contact surfaces of the cylinder head and camshaft housing sub-assembly LH.

HINT:

Tape the screwdriver tip before use.

REMOVE NO. 1 CHAIN VIBRATION DAMPER
Refer to PROCEDURE - Step 46
REMOVE NO. 2 CHAIN VIBRATION DAMPER
Refer to PROCEDURE - Step 47
REMOVE NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY
1. Remove the 24 No. 1 valve rocker arm sub-assemblies.
  HINT:

  Arrange the removed parts in the correct order.
REMOVE VALVE LASH ADJUSTER ASSEMBLY
1. Remove the 24 valve lash adjuster assemblies.
  HINT:

  Arrange the removed parts in the correct order.
REMOVE VALVE STEM CAP
1. Remove the 24 valve stem caps.
  HINT:

  Arrange the removed parts in the correct order.
REMOVE REAR WATER BY-PASS JOINT
Refer to PROCEDURE - Step 22
REMOVE NO. 2 FUEL PIPE SUB-ASSEMBLY
Refer to PROCEDURE - Step 2
REMOVE FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY LH
Refer to PROCEDURE - Step 3
REMOVE FUEL DELIVERY PIPE RH
Refer to PROCEDURE - Step 4
REMOVE FUEL INJECTOR ASSEMBLY (for Direct Injection)
Refer to PROCEDURE - Step 5
REMOVE FUEL INJECTOR SEAL
Refer to PROCEDURE - Step 6
REMOVE CYLINDER HEAD SUB-ASSEMBLY
1. Using a 10 mm bi-hexagon wrench, uniformly loosen the 8 bolts in the sequence shown in the illustration. Remove the 8 bolts and 8 plate washers.

  Fig 3: Cylinder Head Sub-Assembly Loosening Sequence
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Be careful not to drop plate washers into the cylinder head sub-assembly.
  - Cylinder head warpage or cracking could result from removing bolts in an incorrect order.
  HINT:

  Be sure to keep separate the removed parts for each installation position.
2. Remove the cylinder head sub-assembly.
REMOVE CYLINDER HEAD GASKET
1. Remove the cylinder head gasket from the cylinder block sub-assembly.
REMOVE CYLINDER HEAD LH
1. Uniformly loosen and remove the 2 bolts in the sequence shown in the illustration.

  Fig 4: Cylinder Head LH Loosening Sequence (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a 10 mm bi-hexagon wrench, uniformly loosen the 8 bolts in the sequence shown in the illustration. Remove the 8 bolts and 8 plate washers.

  Fig 5: Cylinder Head LH Loosening Sequence (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Be careful not to drop plate washers into the cylinder head LH.
  - Cylinder head warpage or cracking could result from removing bolts in an incorrect order.
  HINT:

  Be sure to keep separate the removed parts for each installation position.
3. Remove the cylinder head LH.
REMOVE NO. 2 CYLINDER HEAD GASKET
1. Remove the No. 2 cylinder head gasket from the cylinder block sub-assembly.
INSPECT CYLINDER HEAD SET BOLT
Refer to PROCEDURE - Step 4
INSPECT CYLINDER HEAD SUB-ASSEMBLY
Refer to PROCEDURE - Step 1
