Components [10/2017 - ]

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

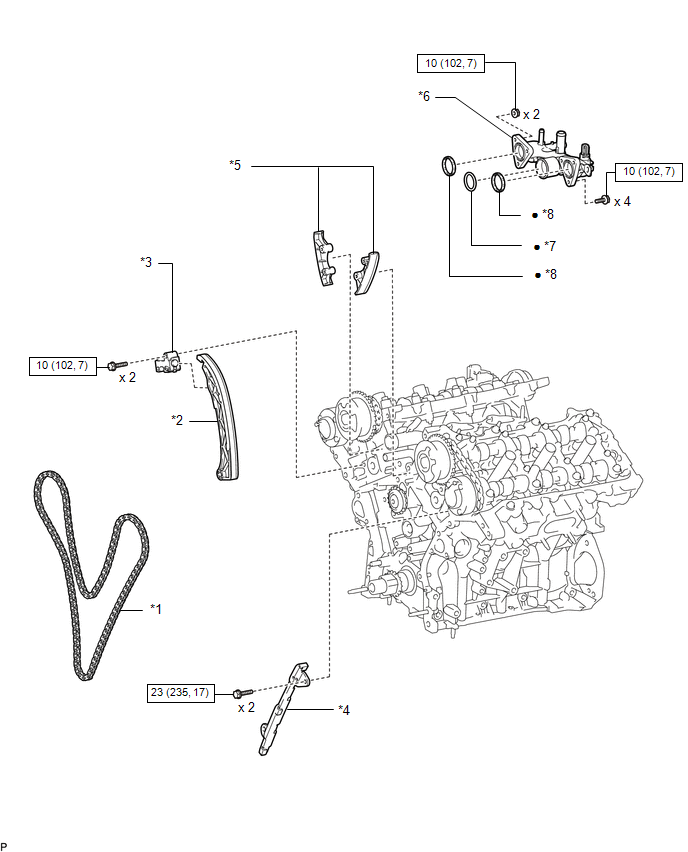

Fig 1: Cylinder Head Gasket Replacement Components With Torque Specifications (1 Of 5)
GTY815536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CHAIN SUB-ASSEMBLY *2 CHAIN TENSIONER SLIPPER
*3 NO. 1 CHAIN TENSIONER ASSEMBLY *4 NO. 1 CHAIN VIBRATION DAMPER
*5 NO. 2 CHAIN VIBRATION DAMPER *6 REAR WATER BY-PASS JOINT
*7 O-RING *8 WATER BY-PASS JOINT GASKET
N.m (kgf/cm, ft.lbf) : Specified torque • Non-reusable part

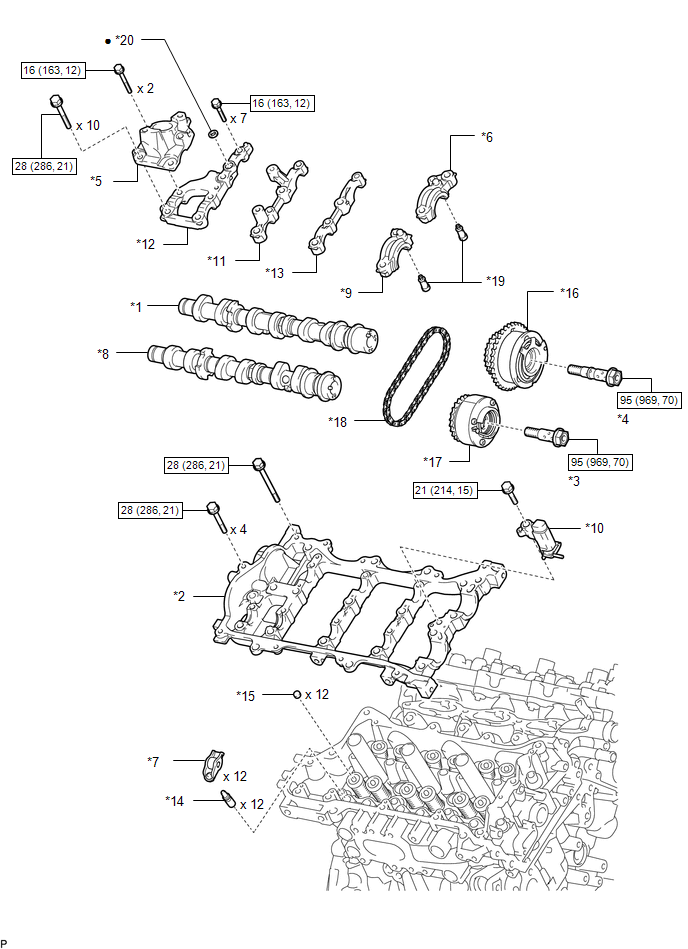

Fig 2: Cylinder Head Gasket Replacement Components With Torque Specifications (2 Of 5)
GTY838072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CAMSHAFT *2 CAMSHAFT HOUSING SUB-ASSEMBLY RH
*3 CAMSHAFT TIMING GEAR BOLT (for Exhaust Side of Bank 1) *4 CAMSHAFT TIMING GEAR BOLT (for Intake Side of Bank 1)
*5 FUEL PUMP LIFTER HOUSING *6 NO. 1 CAMSHAFT BEARING CAP
*7 NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY *8 NO. 2 CAMSHAFT
*9 NO. 2 CAMSHAFT BEARING CAP *10 NO. 2 CHAIN TENSIONER ASSEMBLY
*11 NO. 5 CAMSHAFT BEARING CAP *12 NO. 6 CAMSHAFT BEARING CAP
*13 NO. 8 CAMSHAFT BEARING CAP *14 VALVE LASH ADJUSTER ASSEMBLY
*15 VALVE STEM CAP *16 CAMSHAFT TIMING GEAR ASSEMBLY
*17 CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY RH *18 NO. 2 CHAIN SUB-ASSEMBLY
*19 OIL CONTROL VALVE FILTER RH *20 GASKET
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part

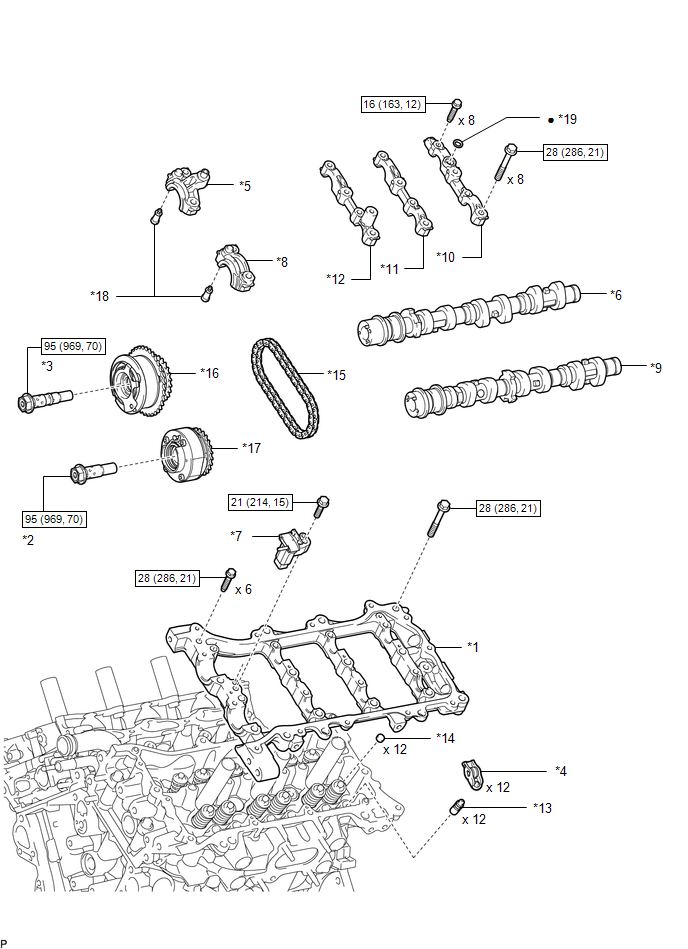

Fig 3: Cylinder Head Gasket Replacement Components With Torque Specifications (3 Of 5)
GTY818836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CAMSHAFT HOUSING SUB-ASSEMBLY LH *2 CAMSHAFT TIMING GEAR BOLT (for Exhaust Side of Bank 2)
*3 CAMSHAFT TIMING GEAR BOLT (for Intake Side of Bank 2) *4 NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY
*5 NO. 3 CAMSHAFT BEARING CAP *6 NO. 3 CAMSHAFT SUB-ASSEMBLY
*7 NO. 3 CHAIN TENSIONER ASSEMBLY *8 NO. 4 CAMSHAFT BEARING CAP
*9 NO. 4 CAMSHAFT SUB-ASSEMBLY *10 NO. 7 CAMSHAFT BEARING CAP
*11 NO. 8 CAMSHAFT BEARING CAP *12 NO. 9 CAMSHAFT BEARING CAP
*13 VALVE LASH ADJUSTER ASSEMBLY *14 VALVE STEM CAP
*15 NO. 2 CHAIN SUB-ASSEMBLY *16 CAMSHAFT TIMING GEAR ASSEMBLY
*17 CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY *18 OIL CONTROL VALVE FILTER LH
*19 GASKET - -
N.m (kgf/cm, ft.lbf) : Specified torque • Non-reusable part

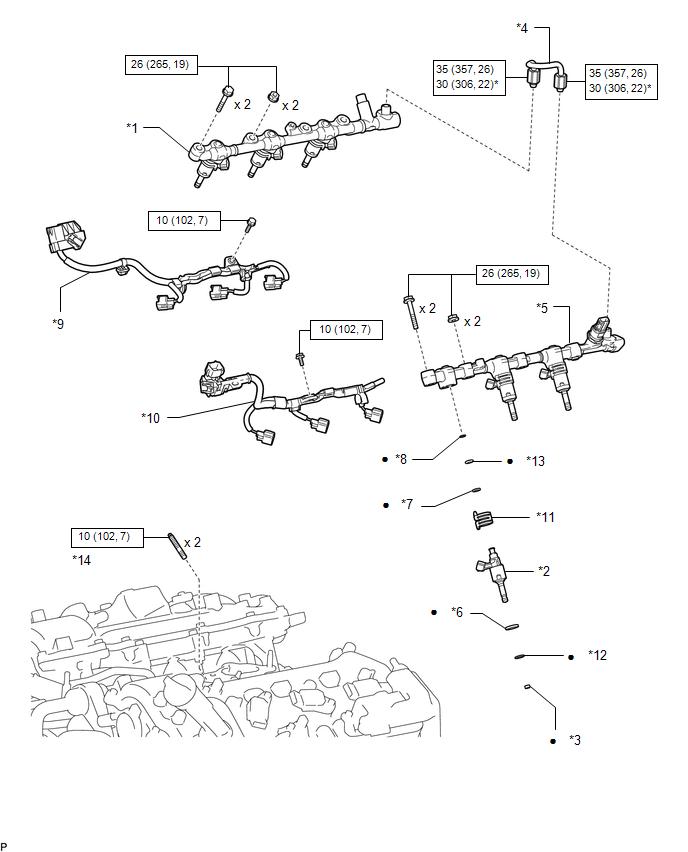

Fig 4: Cylinder Head Gasket Replacement Components With Torque Specifications (4 Of 5)
GTY837470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FUEL DELIVERY PIPE RH *2 FUEL INJECTOR ASSEMBLY
*3 FUEL INJECTOR SEAL *4 NO. 2 FUEL PIPE SUB-ASSEMBLY
*5 FUEL DELIVERY PIPE ASSEMBLY LH (FUEL PRESSURE SENSOR) *6 INJECTOR VIBRATION INSULATOR
*7 NO. 1 FUEL INJECTOR BACK-UP RING *8 NO. 3 FUEL INJECTOR BACK-UP RING
*9 NO. 6 ENGINE WIRE *10 NO. 7 ENGINE WIRE
*11 NOZZLE HOLDER CLAMP *12 C-RING
*13 O-RING *14 STUD BOLT
N.m (kgf/cm, ft.lbf) : Specified torque * For use with union nut wrench
• Non-reusable part - -

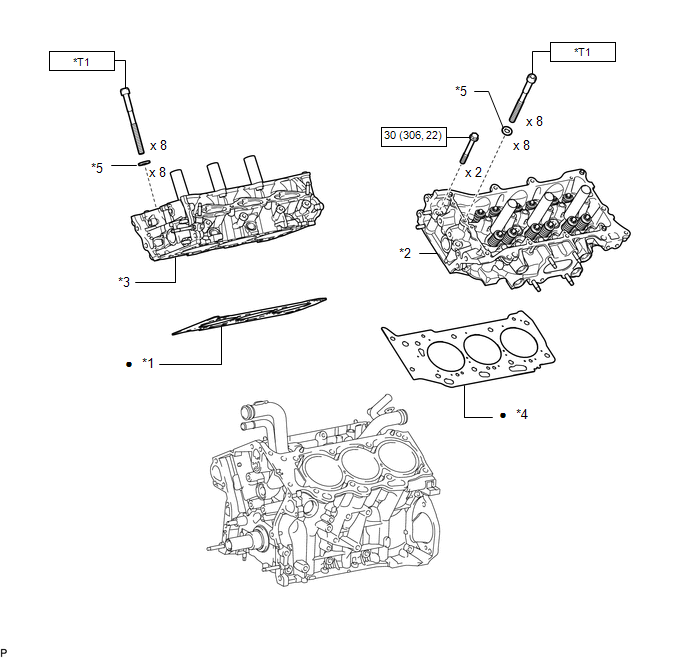

Fig 5: Cylinder Head Gasket Replacement Components With Torque Specifications (5 Of 5)
GTY782036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CYLINDER HEAD GASKET *2 CYLINDER HEAD LH
*3 CYLINDER HEAD SUB-ASSEMBLY *4 NO. 2 CYLINDER HEAD GASKET
*5 PLATE WASHER - -
N.m (kgf/cm, ft.lbf) : Specified torque • Non-reusable part
*T1 1st: 36 N.m (367 kgf/cm, 27 ft.lbf)
2nd: Turn 90°
3rd: Turn 90°		 - -
