Components [10/2017 - ]
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

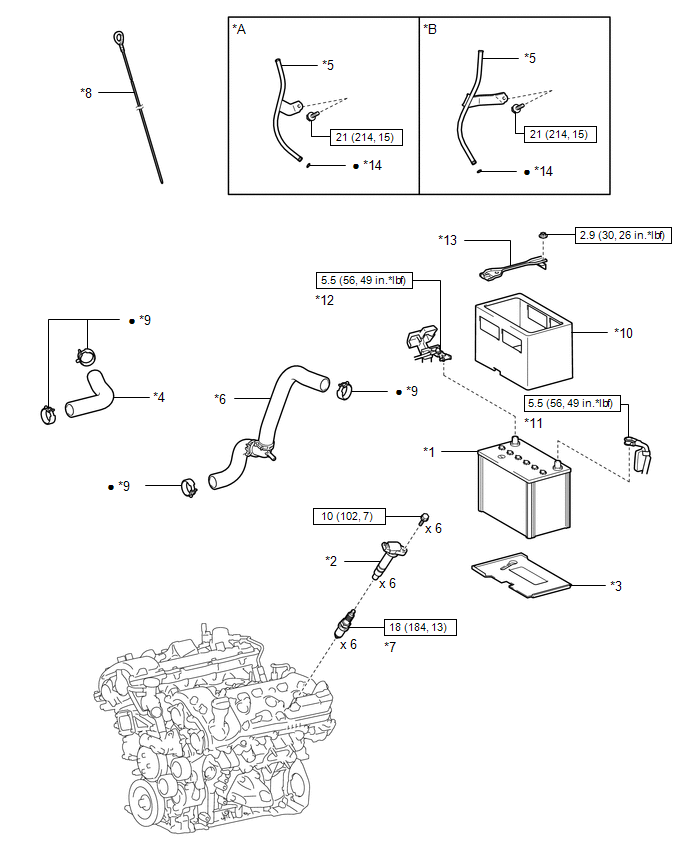

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *A |
for 2WD |
*B |
for AWD |
| *1 |
BATTERY |
*2 |
IGNITION COIL ASSEMBLY |
| *3 |
NO. 1 BATTERY TRAY SUPPORT |
*4 |
NO. 1 RADIATOR HOSE |
| *5 |
NO. 2 ENGINE OIL LEVEL DIPSTICK GUIDE |
*6 |
NO. 2 RADIATOR HOSE SUB-ASSEMBLY |
| *7 |
SPARK PLUG |
*8 |
ENGINE OIL LEVEL DIPSTICK |
| *9 |
RADIATOR HOSE HOSE CLAMP |
*10 |
BATTERY INSULATOR |
| *11 |
NEGATIVE BATTERY CABLE |
*12 |
POSITIVE BATTERY CABLE |
| *13 |
BATTERY CLAMP |
*14 |
O-RING |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |

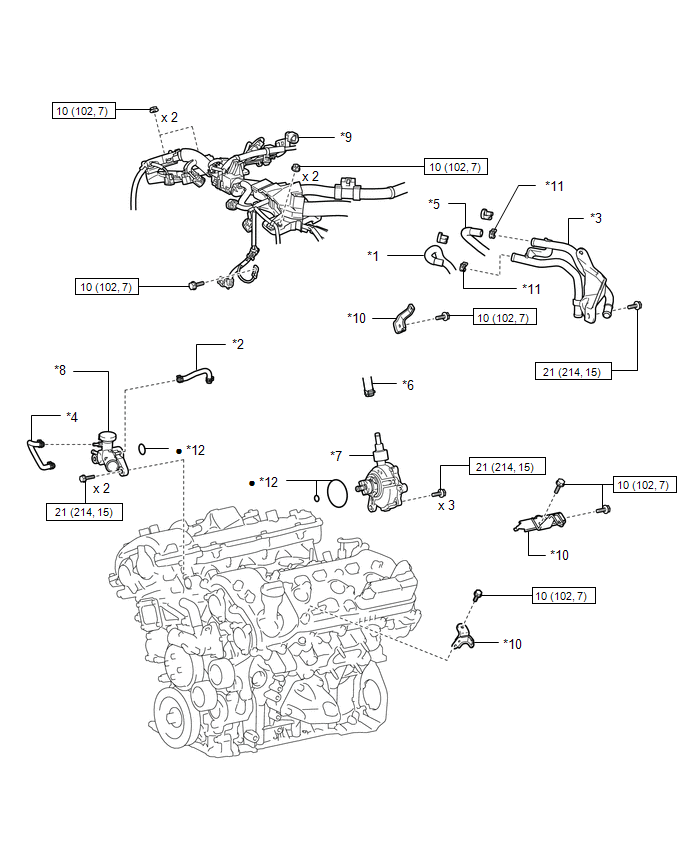

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
INLET HEATER WATER HOSE A |
*2 |
NO. 2 WATER BY-PASS HOSE |
| *3 |
NO. 2 WATER BY-PASS PIPE |
*4 |
NO. 6 WATER BY-PASS HOSE |
| *5 |
OUTLET HEATER WATER HOSE A |
*6 |
UNION TO CHECK VALVE HOSE |
| *7 |
VACUUM PUMP ASSEMBLY |
*8 |
WATER OUTLET SUB-ASSEMBLY |
| *9 |
WIRE HARNESS |
*10 |
WIRE HARNESS CLAMP BRACKET |
| *11 |
WATER HOSE SET |
*12 |
O-RING |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |

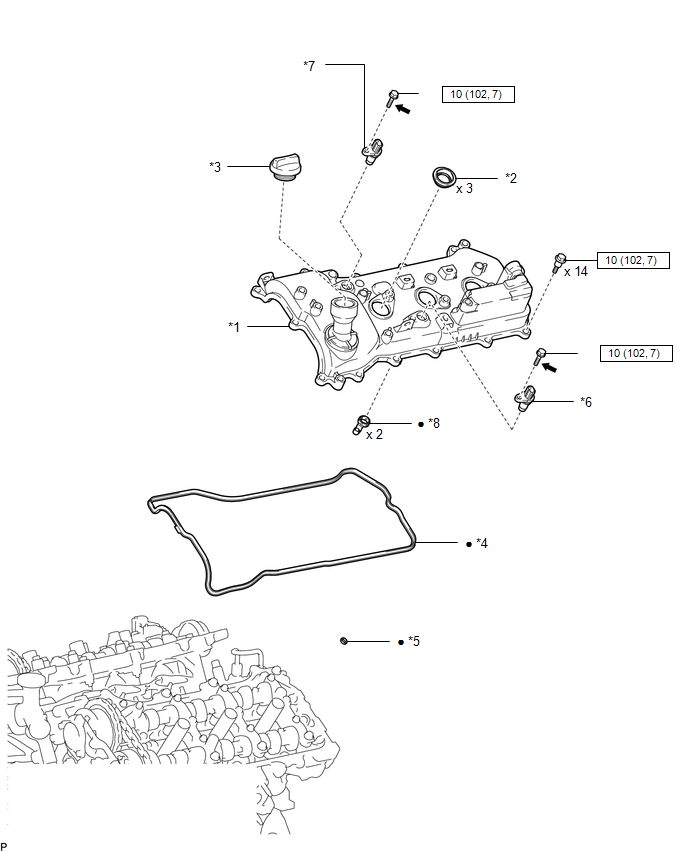

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
CYLINDER HEAD COVER SUB-ASSEMBLY |
*2 |
NO. 1 ENGINE COVER SUB-ASSEMBLY |
| *3 |
SPARK PLUG TUBE GASKET |
*4 |
CYLINDER HEAD COVER GASKET |
| *5 |
CAMSHAFT BEARING CAP OIL HOLEGASKET RH |
*6 |
VVT SENSOR (for Intake Side of Bank 1) |
| *7 |
VVT SENSOR (for Exhaust Side of Bank1) |
*8 |
GASKET |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
 |
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent |
* |
Precoated part |

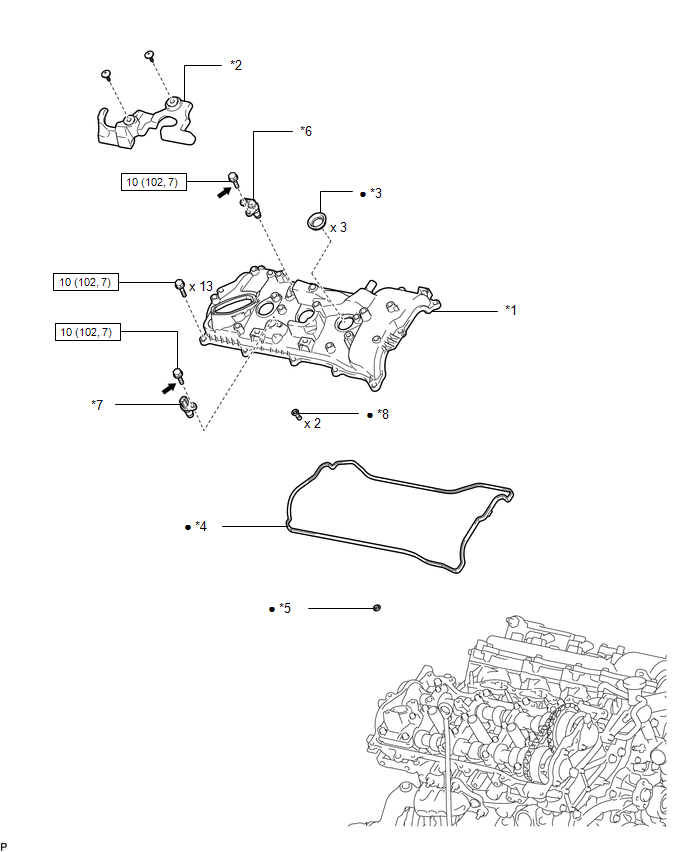

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
CYLINDER HEAD COVER SUB-ASSEMBLY LH |
*2 |
SPARK PLUG TUBE GASKET |
| *3 |
OIL FILLER CAP SUB-ASSEMBLY |
*4 |
CYLINDER HEAD COVER GASKET |
| *5 |
CAMSHAFT BEARING CAP OIL HOLEGASKET LH |
*6 |
VVT SENSOR (for Exhaust Side of Bank2) |
| *7 |
VVT SENSOR (for Intake Side of Bank 2) |
*8 |
GASKET |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
|
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent |
* |
Precoated part |

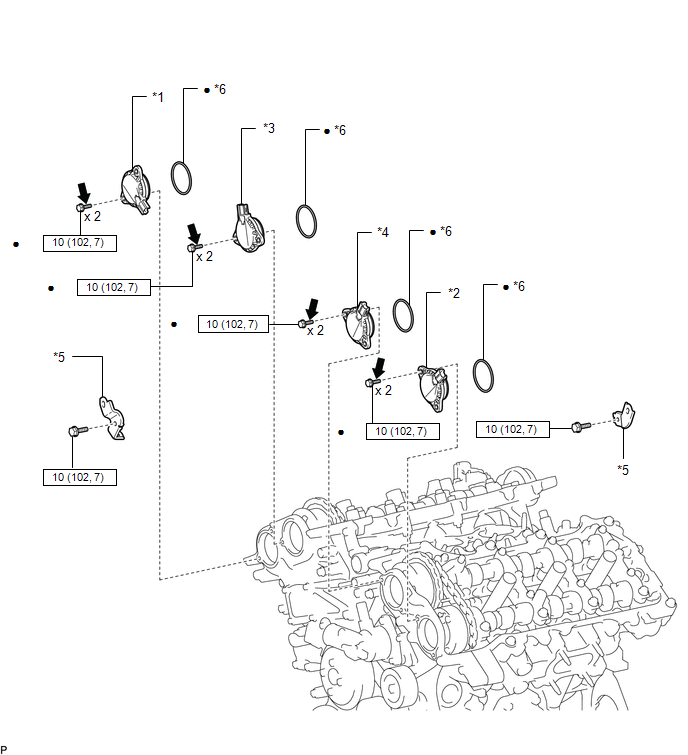

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 1) |
*2 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 2) |
| *3 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 1) |
*4 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 2) |
| *5 |
WIRE HARNESS CLAMP BRACKET |
*6 |
O-RING |
|
N.m (kgf/cm, ft.lbf) : Specified torque |
• |
Non-reusable part |
|
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent |
* |
Precoated part |

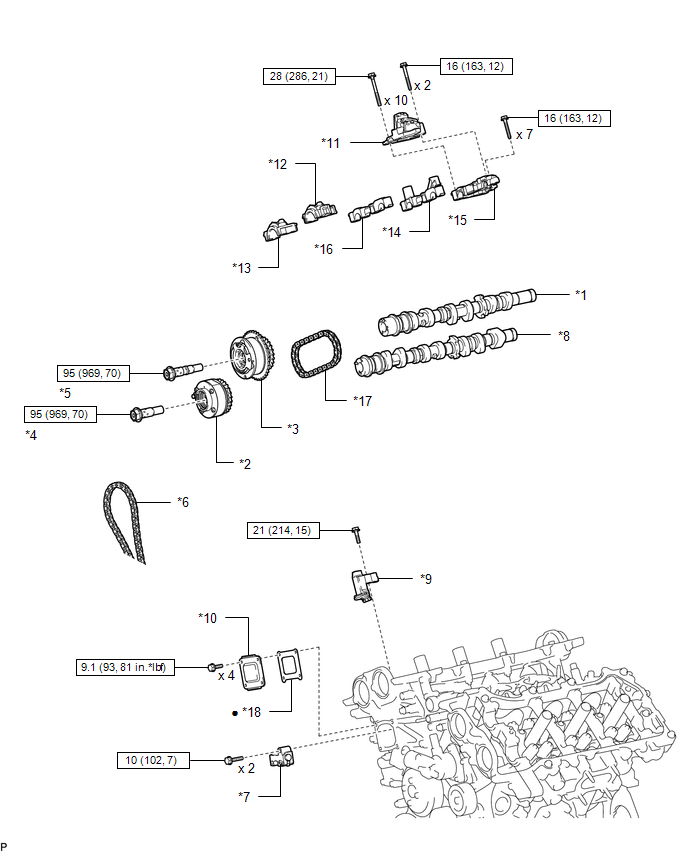

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
CAMSHAFT |
*2 |
CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY RH |
| *3 |
CAMSHAFT TIMING GEAR ASSEMBLY |
*4 |
CAMSHAFT TIMING GEAR BOLT (for Exhaust Side of Bank 1) |
| *5 |
CAMSHAFT TIMING GEAR BOLT (for Intake Side of Bank 1) |
*6 |
CHAIN SUB-ASSEMBLY |
| *7 |
NO. 1 CHAIN TENSIONER ASSEMBLY |
*8 |
NO. 2 CAMSHAFT |
| *9 |
NO. 2 CHAIN TENSIONER ASSEMBLY |
*10 |
TIMING CHAIN COVER PLATE |
| *11 |
FUEL PUMP LIFTER HOUSING |
*12 |
NO. 1 CAMSHAFT BEARING CAP |
| *13 |
NO. 2 CAMSHAFT BEARING CAP |
*14 |
NO. 5 CAMSHAFT BEARING CAP |
| *15 |
NO. 6 CAMSHAFT BEARING CAP |
*16 |
NO. 8 CAMSHAFT BEARING CAP |
| *17 |
NO. 2 CHAIN SUB-ASSEMBLY (for Bank 1) |
*18 |
TIMING GEAR OR CHAIN COVER PLATE GASKET |
|
N.m (kgf/cm, ft.lbf) : Specified torque |
• |
Non-reusable part |

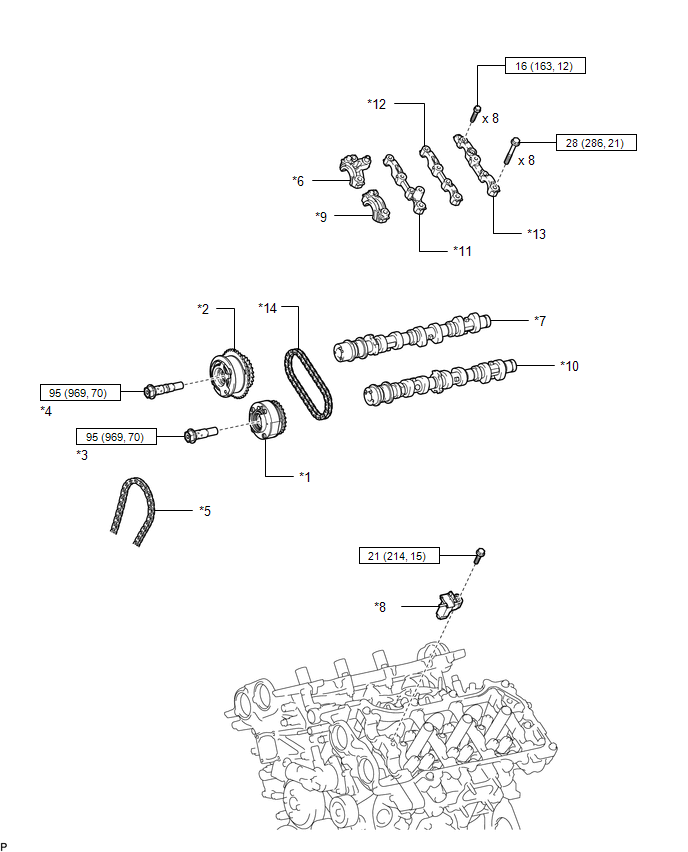

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY |
*2 |
CAMSHAFT TIMING GEAR ASSEMBLY |
| *3 |
CAMSHAFT TIMING GEAR BOLT (for Exhaust Side of Bank 2) |
*4 |
CAMSHAFT TIMING GEAR BOLT (for Intake Side of Bank 2) |
| *5 |
CHAIN SUB-ASSEMBLY |
*6 |
NO. 3 CAMSHAFT BEARING CAP |
| *7 |
NO. 3 CAMSHAFT SUB-ASSEMBLY |
*8 |
NO. 3 CHAIN TENSIONER ASSEMBLY |
| *9 |
NO. 4 CAMSHAFT BEARING CAP |
*10 |
NO. 4 CAMSHAFT SUB-ASSEMBLY |
| *11 |
NO. 7 CAMSHAFT BEARING CAP |
*12 |
NO. 8 CAMSHAFT BEARING CAP |
| *13 |
NO. 9 CAMSHAFT BEARING CAP |
*14 |
NO. 2 CHAIN SUB-ASSEMBLY (for Bank 2) |
|
N.m (kgf/cm, ft.lbf) : Specified torque |
- |
- |
