Parts Location [08/2015 - ]: Illustration

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

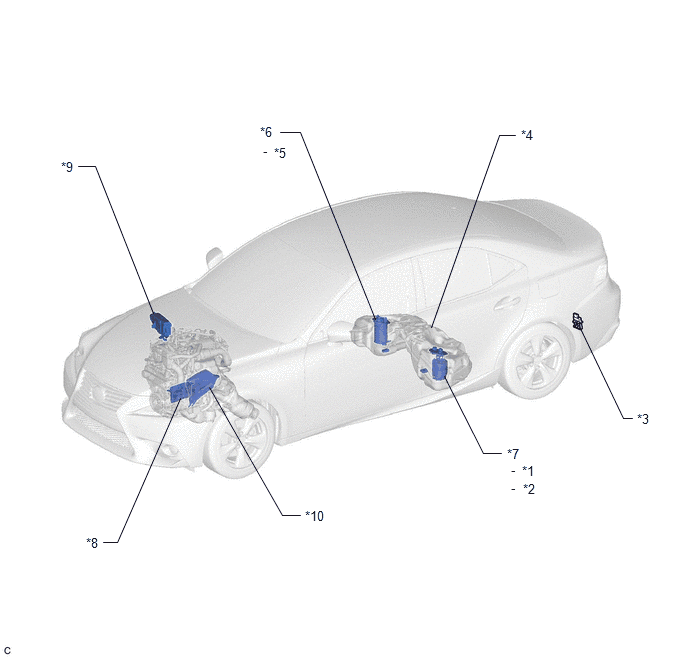

*1	FUEL SENDER GAUGE ASSEMBLY	*2	FUEL PUMP (for Low Pressure)
*3	FUEL PUMP CONTROL ECU	*4	FUEL TANK ASSEMBLY
*5	NO. 2 FUEL SENDER GAUGE ASSEMBLY	*6	FUEL TANK VENT TUBE ASSEMBLY
*7	FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY	*8	ECM
*9	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - P/I-B FUSE - ENG-B FUSE - FUEL PMP FUSE	*10	NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY - SEMICONDUCTOR POWER INTEGRATION ECU (EFI-MAIN RELAY) (EFI-MAIN FUSE) (EFI NO. 2 FUSE) (P-INJ FUSE) - EFI MAIN NO. 2 RELAY - INJ RELAY - INJ FUSE

*1	PORT FUEL INJECTOR ASSEMBLY (for Port Injection)	*2	FUEL PRESSURE SENSOR (for Low Pressure)
*3	FUEL PUMP ASSEMBLY (for High Pressure)	*4	FUEL PRESSURE SENSOR (for High Pressure)
*5	DIRECT FUEL INJECTOR ASSEMBLY (for Direct Injection)	-	-
