Reassembly [08/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

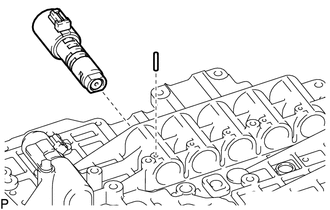

  1. INSTALL SOLENOID (SL5) VALVE
    GTY683489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the solenoid (SL5) valve.
    2. Install the straight pin.

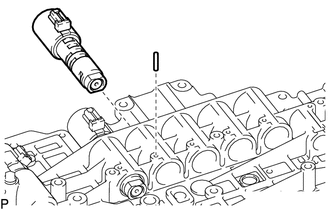

  2. INSTALL SOLENOID (SL3) VALVE
    GTY662301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the solenoid (SL3) valve.
    2. Install the straight pin.

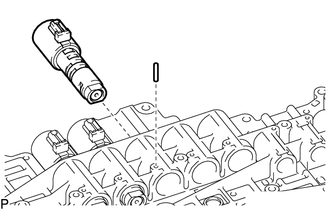

  3. INSTALL SOLENOID (SL4) VALVE
    GTY662302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the solenoid (SL4) valve.
    2. Install the straight pin.

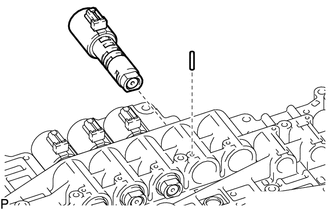

  4. INSTALL SOLENOID (SL2) VALVE
    1. Install the solenoid (SL2) valve.
      GTY662304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the straight pin.

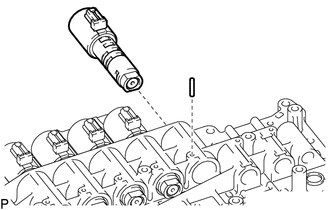

  5. INSTALL SOLENOID (SL1) VALVE
    GTY662305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the solenoid (SL1) valve.
    2. Install the straight pin.

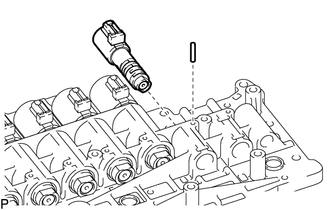

  6. INSTALL SOLENOID (SLT) VALVE
    GTY683490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the solenoid (SLT) valve.
    2. Install the straight pin.

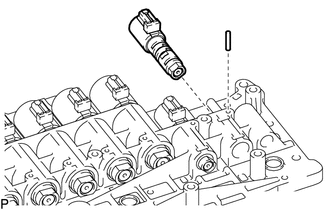

  7. INSTALL SOLENOID (SLU) VALVE
    GTY662236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the solenoid (SLU) valve.
    2. Install the straight pin.

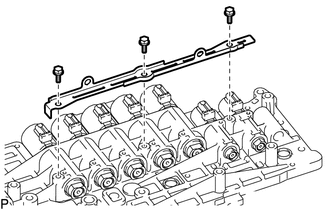

  8. INSTALL SOLENOID LOCK PLATE
    1. Install the solenoid lock plate with the 3 bolts.
      GTY662238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

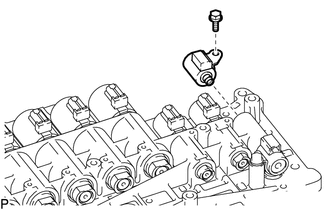

  9. INSTALL SOLENOID (SC2) VALVE
    1. Install the solenoid (SC2) valve with the bolt.
      GTY683475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)

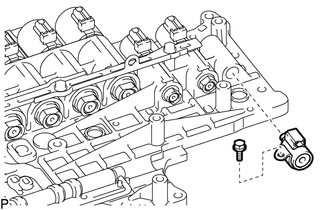

  10. INSTALL SOLENOID (SC1) VALVE
    1. Install the solenoid (SC1) valve with the bolt.
      GTY662239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 6.4 N*m (65 kgf*cm, 57 in.*lbf)
