Components [08/2015 - 10/2016]
WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

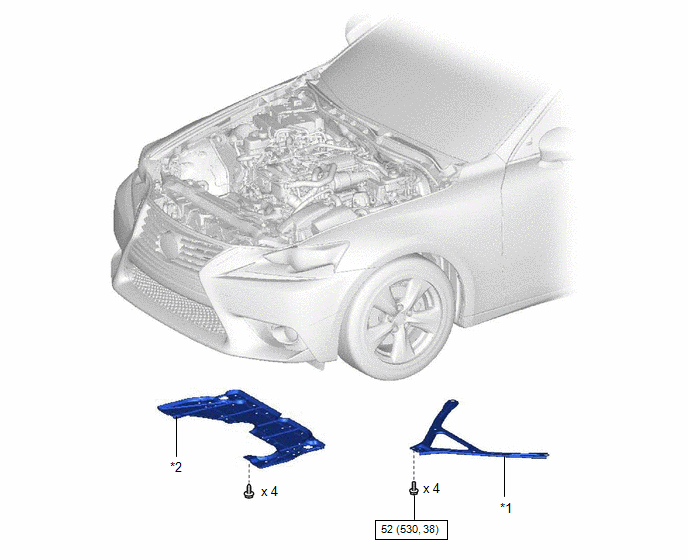

Fig 1: Valve Body Assembly (for 8AR-FTS) Replacement Components With Torque Specifications [08/2015 - 10/2016] (1 Of 3)
| *1 | FRONT SUSPENSION MEMBER BRACE | *2 | NO. 2 ENGINE UNDER COVER |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
Fig 2: Valve Body Assembly (for 8AR-FTS) Replacement Components With Torque Specifications [08/2015 - 10/2016] (2 Of 3)
| *1 | AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY | *2 | TRANSMISSION VALVE BODY ASSEMBLY |
| *3 | VALVE BODY OIL STRAINER ASSEMBLY | *4 | ATF TEMPERATURE SENSOR |
| *5 | DETENT SPRING | *6 | DETENT SPRING COVER |
| *7 | LOCK PLATE | *8 | TRANSMISSION OIL CLEANER MAGNET |
| *9 | DRAIN PLUG | *10 | OVERFLOW PLUG |
| *11 | AUTOMATIC TRANSMISSION OIL PAN GASKET | *12 | O-RING |
| *13 | GASKET | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| Toyota Genuine ATF WS | - | - |
Fig 3: Valve Body Assembly (for 8AR-FTS) Replacement Components With Torque Specifications [08/2015 - 10/2016] (3 Of 3)
| *1 | SOLENOID (SC1) VALVE | *2 | SOLENOID (SC2) VALVE |
| *3 | SOLENOID (SL1) VALVE | *4 | SOLENOID (SL2) VALVE |
| *5 | SOLENOID (SL3) VALVE | *6 | SOLENOID (SL4) VALVE |
| *7 | SOLENOID (SL5) VALVE | *8 | SOLENOID (SLT) VALVE |
| *9 | SOLENOID (SLU) VALVE | *10 | SOLENOID LOCK PLATE |
| *11 | STRAIGHT PIN | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
