Removal [08/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

    Refer to REMOVAL [08/2015 - 10/2016] , or refer to REMOVAL [10/2016 - ]

  2. REMOVE TRANSMISSION WIRE

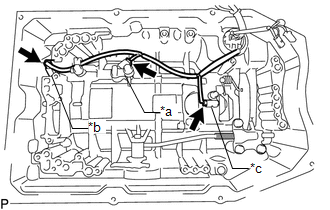

    1. Disconnect the transmission revolution sensor (NC3) connector.
      GTY652501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Transmission Revolution Sensor (NC3) Connector
      *b Transmission Revolution Sensor (NT) Connector
      *c Transmission Revolution Sensor (SP2) Connector
    2. Disconnect the transmission revolution sensor (NT) connector.
    3. Disconnect the transmission revolution sensor (SP2) connector.

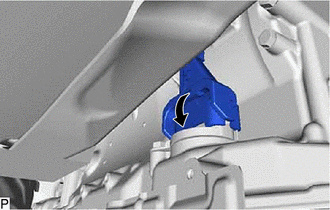

    4. Disconnect the transmission wire connector.

      HINT:

      Disengage the claw, pull down the lever, and then disconnect the transmission wire connector.

      GTY683477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the bolt and transmission wire.
      GTY662247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
