Removal [04/2013 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

    Refer to REMOVAL [04/2013 - 10/2016] , or refer to REMOVAL [10/2016 - ]

  2. REMOVE TRANSMISSION WIRE

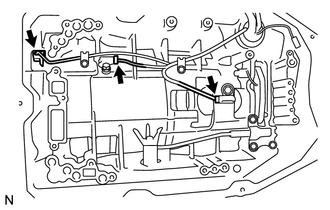

    1. Disconnect the 3 connectors from the 3 transmission revolution sensors.
      GTY466947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the transmission wire connector.

      HINT:

      Detach the claw, press down the lever, and then disconnect the transmission wire connector.

      GTY107394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the bolt and pull out the transmission wire.
      GTY466949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the O-ring from the transmission wire connector.
