Components [04/2013 - ]

WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

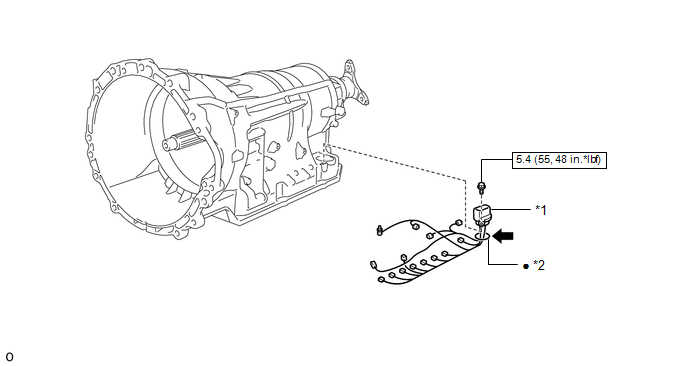

Fig 1: Transmission Wire (for 2GR) Replacement Components With Torque Specifications
GTY456194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 TRANSMISSION WIRE *2 O-RING
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Toyota Genuine ATF WS - -
