Removal [04/2013 - 10/2016]: Procedure

WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE STEERING WHEEL ASSEMBLY

    Refer to REMOVAL [04/2013 - 10/2016]

  2. REMOVE SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY)

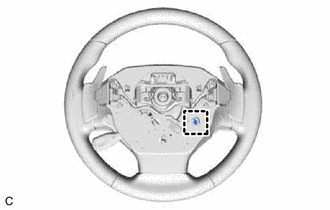

    1. Disconnect the No. 1 switch wire connector clamp from the steering wheel assembly.
      GTY469007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

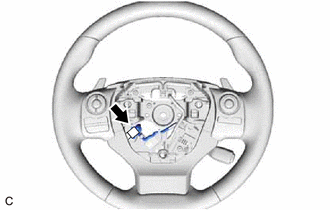

    2. Disconnect the No. 1 switch wire connector.
      GTY458325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 4 screws, and separate the 2 shift paddle switches (transmission shift switch assemblies) from the steering wheel assembly.
      GTY469006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 5 guides to remove the 2 shift paddle switches (transmission shift switch assemblies) with No. 1 switch wire from the steering wheel assembly.
      GTY458323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disconnect the 2 shift paddle switch (transmission shift switch assembly) connectors to remove the No. 1 switch wire from the 2 shift paddle switches (transmission shift switch assemblies).
      GTY458321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
