Reassembly [04/2013 - 09/2020]: Procedure

WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL SHIFT POSITION INDICATOR
    1. Install the shift position indicator to the console panel sub-assembly with the 2 screws.

      Torque: 1.6 N*m (16 kgf*cm, 14 in.*lbf)

      GTY464973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

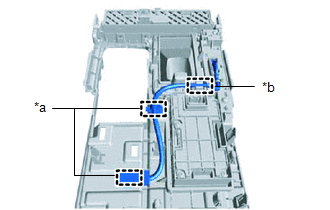

    2. Connect the 2 clamps and guide to the console panel sub-assembly.
      GTY466003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp
      *b Guide
  2. INSTALL SHIFT LEVER PLATE SUB-ASSEMBLY
    1. Engage the 2 claws to install the shift lever plate sub-assembly to the shift position indicator.
      GTY458417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
