Disassembly [04/2013 - 09/2020]: Procedure

WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE SHIFT LEVER PLATE SUB-ASSEMBLY
    1. Disengage the 2 claws and remove the shift lever plate sub-assembly from the shift position indicator.

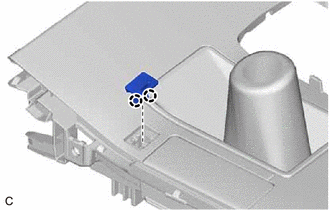

      GTY458417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE SHIFT POSITION INDICATOR
    1. Disconnect the 2 clamps and guide from the console panel sub-assembly.

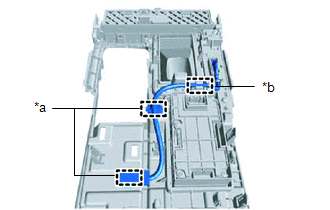

      GTY470682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp
      *b Guide
    2. Remove the 2 screws and shift position indicator from the console panel sub-assembly.

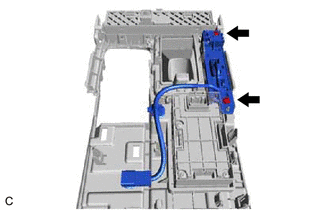

      GTY464973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
