Components [04/2013 - 09/2020]

WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

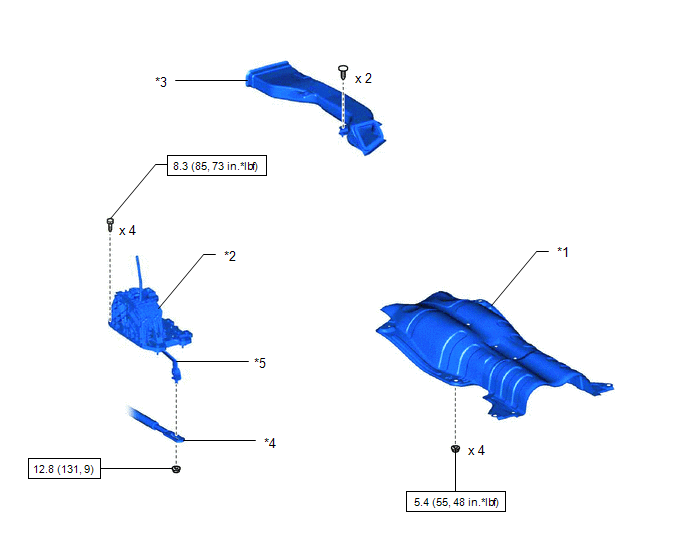

Fig 1: Shift Lever Replacement Components With Torque Specifications [04/2013 - 09/2020] (1 Of 2)
GTY461701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT NO. 1 FLOOR HEAT INSULATOR *2 TRANSMISSION FLOOR SHIFT ASSEMBLY
*3 NO. 1 CONSOLE BOX DUCT *4 FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
*5 LEVER - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

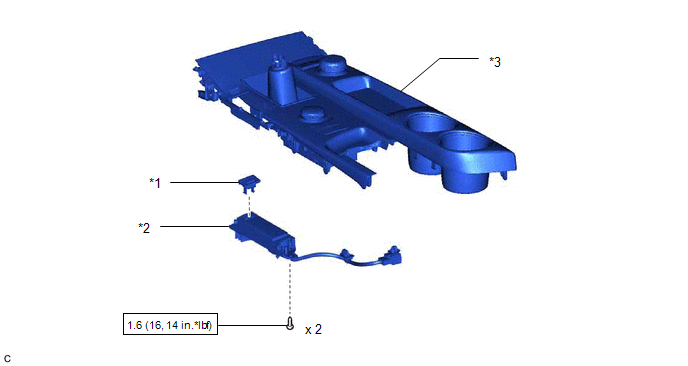

Fig 2: Shift Lever Replacement Components With Torque Specifications [04/2013 - 09/2020] (2 Of 2)
GTY467127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 SHIFT LEVER PLATE SUB-ASSEMBLY *2 SHIFT POSITION INDICATOR
*3 CONSOLE PANEL SUB-ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
