Removal [08/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

    Refer to REMOVAL [08/2015 - 10/2016] , or refer to REMOVAL [10/2016 - ]

  2. REMOVE TRANSMISSION REVOLUTION SENSOR (NC3)

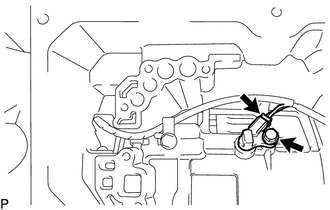

    GTY654790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the transmission revolution sensor (NC3) connector.
    2. Remove the bolt and transmission revolution sensor (NC3) from the automatic transmission case sub-assembly.
  3. REMOVE TRANSMISSION REVOLUTION SENSOR (NT)

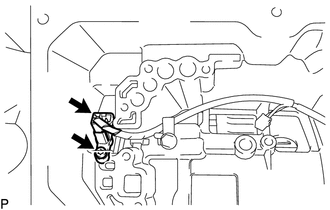

    GTY681813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the transmission revolution sensor (NT) connector.
    2. Using a T30 "TORX" socket wrench, remove the bolt and transmission revolution sensor (NT) from the automatic transmission case sub-assembly.
  4. REMOVE TRANSMISSION REVOLUTION SENSOR (SP2)

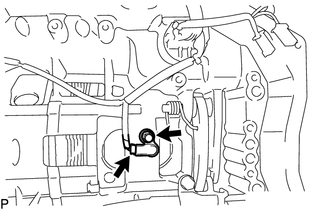

    GTY654788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the transmission revolution sensor (SP2) connector.
    2. Remove the bolt and transmission revolution sensor (SP2) from the automatic transmission case sub-assembly.
