Components [08/2015 - ]

WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

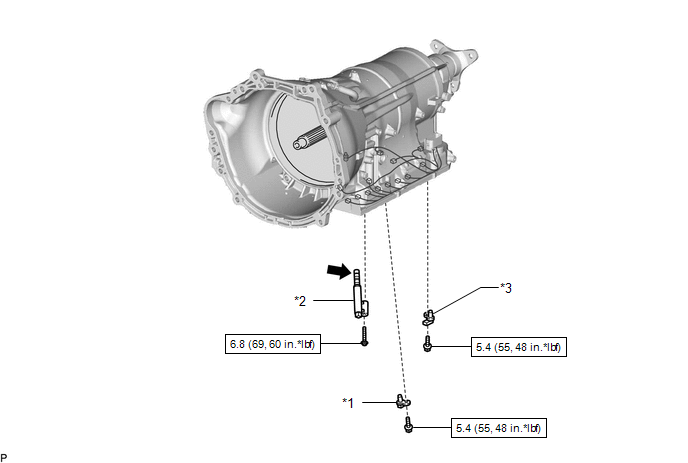

Fig 1: Speed Sensor (for 8AR-FTS) Replacement Components With Torque Specifications
GTY642384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 TRANSMISSION REVOLUTION SENSOR (NC3) *2 TRANSMISSION REVOLUTION SENSOR (NT)
*3 TRANSMISSION REVOLUTION SENSOR (SP2) - -
N*m (kgf*cm, ft.*lbf): Specified torque Toyota Genuine ATF WS
