Components [04/2013 - ]

WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

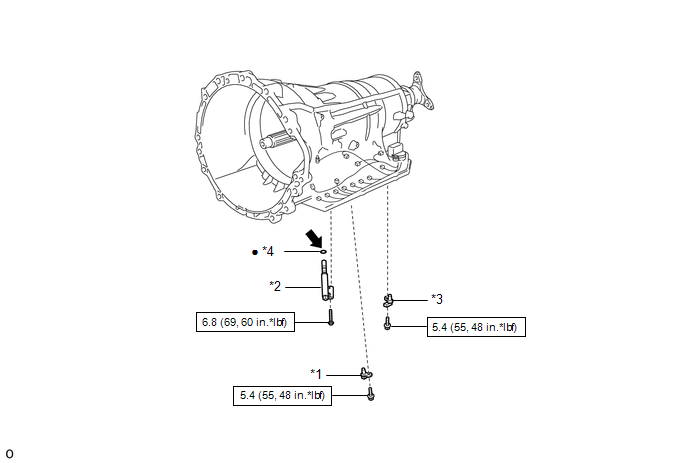

Fig 1: Speed Sensor (for 2GR) Replacement Components With Torque Specifications
GTY465977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 TRANSMISSION REVOLUTION SENSOR NC3 *2 TRANSMISSION REVOLUTION SENSOR NT
*3 TRANSMISSION REVOLUTION SENSOR SP2 *4 O-RING
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Toyota Genuine ATF WS - -
