Removal [04/2013 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. SEPARATE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
    1. Move the shift lever to N.

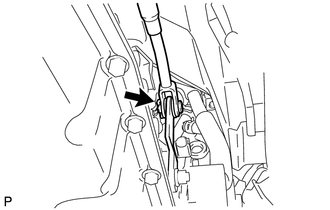

    2. Remove the clip and pin, and separate the floor shift gear shifting rod sub-assembly from the transmission control shaft lever RH.
      GTY471077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY

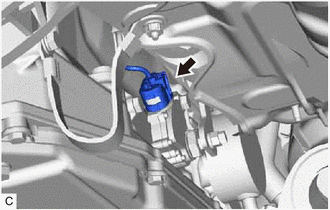

    1. Disconnect the park/neutral position switch assembly connector.
      GTY458342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

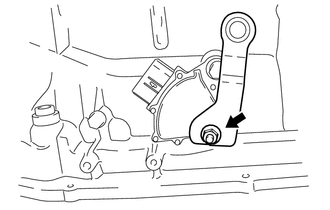

    2. Remove the nut, spring washer and transmission control shaft lever RH from the park/neutral position switch assembly.
      GTY458032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

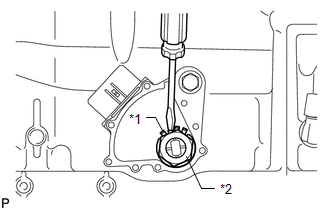

    3. Pry out the nut stopper and remove the lock nut and the nut stopper from the park/neutral position switch assembly.
      GTY457295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Nut Stopper
      *2 Lock Nut
    4. Remove the bolt and park/neutral position switch assembly from the automatic transmission assembly.

      HINT:

      Make sure that the manual valve lever shaft has not been rotated prior to installing the park/neutral position switch assembly as the detent spring may become detached from the manual valve lever shaft.

      GTY470862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
