Installation [04/2013 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL PARK/NEUTRAL POSITION SWITCH ASSEMBLY

    HINT:

    Make sure that the manual valve lever shaft has not been rotated prior to installing the park/neutral position switch assembly as the detent spring may become detached from the manual valve lever shaft.

    1. Clean the bolt and the bolt hole.
    2. Apply adhesive to 2 or 3 threads on the end of the bolt.

      Adhesive

      Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

    3. Temporarily install the park/neutral position switch assembly to the automatic transmission assembly with the bolt.

      HINT:

      Tighten the bolt to the specified torque when adjusting the park/neutral position switch assembly.

    4. Install a new nut stopper and the lock nut to the park/neutral position switch assembly.

      Torque: 6.9 N*m (70 kgf*cm, 61 in.*lbf)

    5. Temporarily install the transmission control shaft lever RH to the park/neutral position switch assembly with the spring washer and nut.

      HINT:

      Tighten the nut to the specified torque when adjusting the park/neutral position switch assembly.

    6. Turn the transmission control shaft lever RH counterclockwise until it stops, then turn it clockwise 2 notches.
      GTY459062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Transmission Control Shaft Lever RH
      *a P
      *b R
      *c N
    7. Remove the nut, spring washer and transmission control shaft lever RH from the park/neutral position switch assembly.
    8. Align the neutral basic line with the groove as shown in the illustration.
      GTY465342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Neutral Basic Line
      *b Groove
    9. Hold the park/neutral position switch assembly in that position and tighten the bolt.

      Torque: 12.8 N*m (131 kgf*cm, 9 ft.*lbf)

    10. Using a screwdriver, stake the lock nut with the stopper plate.
    11. Install the transmission control shaft lever RH to the park/neutral position switch assembly with the spring washer and nut.

      Torque: 15.7 N*m (160 kgf*cm, 12 ft.*lbf)

    12. Connect the park/neutral position switch assembly connector.
  2. INSTALL FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY

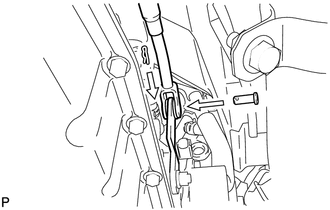

    1. Install the floor shift gear shifting rod sub-assembly to the transmission control shaft lever RH with the pin.
      GTY467834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install a new clip.
  3. INSPECT SHIFT LEVER POSITION

    See step  1

  4. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY OPERATION

    See step  1
