Components [04/2013 - ]
WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

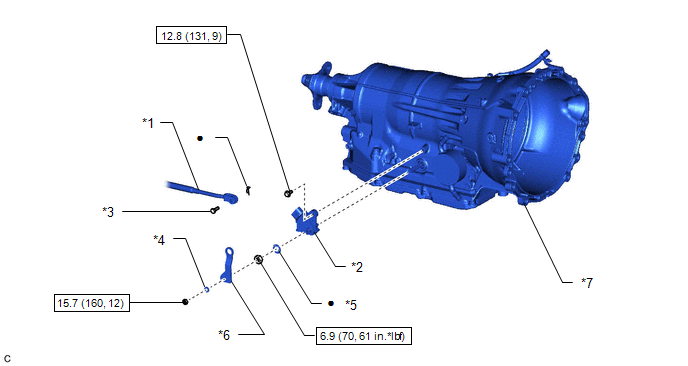

| *1 | FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY | *2 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY |
| *3 | PIN | *4 | SPRING WASHER |
| *5 | NUT STOPPER | *6 | TRANSMISSION CONTROL SHAFT LEVER RH |
| *7 | AUTOMATIC TRANSMISSION ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| * | Precoated part | - | - |
