Removal [04/2013 - 09/2020]: Procedure

WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
Refer to PROCEDURE - Step 1 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 1 [10/2016 - 09/2020]
REMOVE INSTRUMENT PANEL FINISH PANEL END LH
Refer to PROCEDURE - Step 2 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 2 [10/2016 - 09/2020]
REMOVE INSTRUMENT PANEL FINISH PANEL END RH
Refer to PROCEDURE - Step 3 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 3 [10/2016 - 09/2020]
REMOVE FRONT PANEL GARNISH LH
Refer to PROCEDURE - Step 4 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 4 [10/2016 - 09/2020]
REMOVE FRONT PANEL GARNISH RH
Refer to PROCEDURE - Step 5 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 5 [10/2016 - 09/2020]
REMOVE CONSOLE PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 8 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 8 [10/2016 - 09/2020]
REMOVE LEXUS DISPLAY AUDIO CONTROLLER (for Radio and Display Type)
Refer to PROCEDURE - Step 7 [04/2013 - 09/2020]
REMOVE REMOTE TOUCH (for Multi-Media Module Receiver Type)
Refer to PROCEDURE - Step 7 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 7 [10/2016 - 09/2020]

REMOVE COMBINATION SWITCH ASSEMBLY

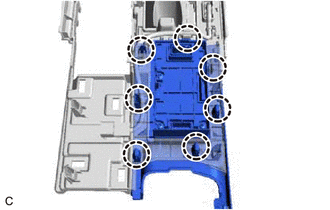

Disengage the 7 claws and remove the combination switch assembly from the upper console panel sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE CLIP

HINT:

Perform this procedure only when replacement of the clip is necessary.

Remove the 4 clips from the combination switch assembly.
