Components [04/2013 - 09/2020]
WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

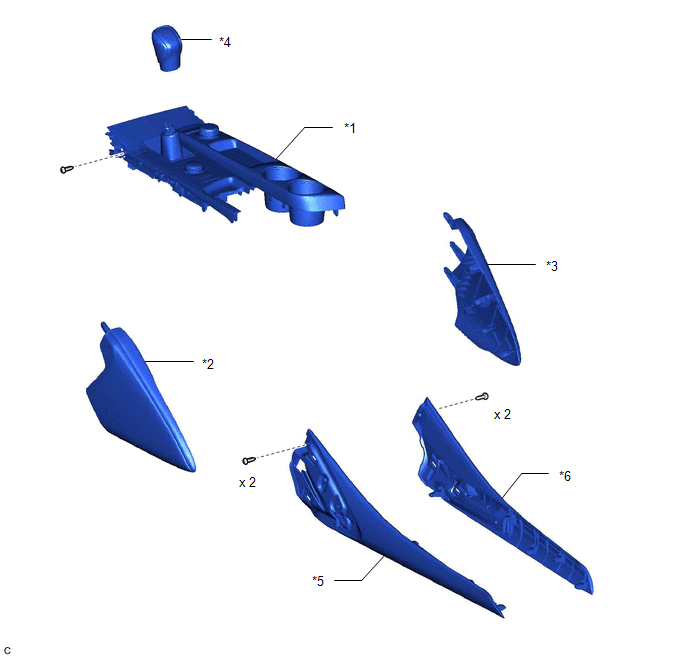

| *1 |
CONSOLE PANEL SUB-ASSEMBLY |
*2 |
INSTRUMENT PANEL FINISH PANEL END LH |
| *3 |
INSTRUMENT PANEL FINISH PANEL END RH |
*4 |
SHIFT LEVER KNOB SUB-ASSEMBLY |
| *5 |
FRONT PANEL GARNISH LH |
*6 |
FRONT PANEL GARNISH RH |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

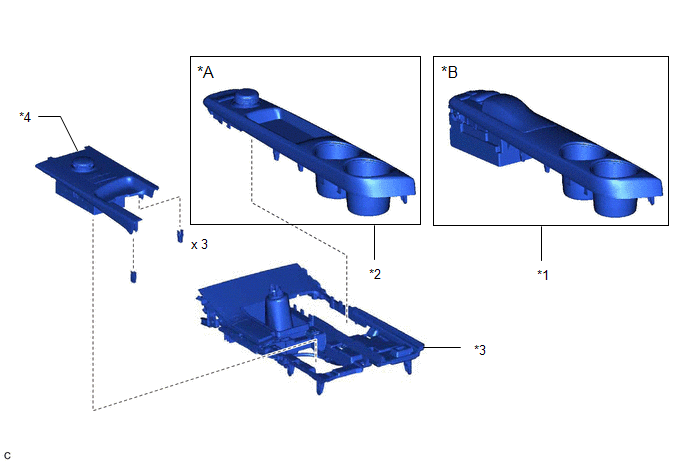

| *A |
For Radio and Display Type |
*B |
For Multi-Media Module Receiver Type |
| *1 |
REMOTE TOUCH |
*2 |
LEXUS DISPLAY AUDIO CONTROLLER |
| *3 |
UPPER CONSOLE PANEL SUB-ASSEMBLY |
*4 |
COMBINATION SWITCH ASSEMBLY |
