Replacement [08/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY

    Refer to REMOVAL [08/2015 - ]

  2. REMOVE AUTOMATIC TRANSMISSION FLANGE YOKE ASSEMBLY

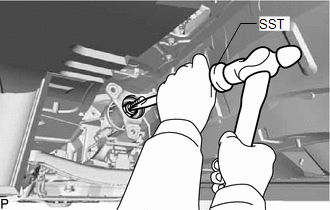

    1. Using SST and a hammer, release the staked part of the lock nut.
      • SST: 09930-00010
      NOTE:
      • Use SST with the tapered part facing the shaft.
      • Do not modify the tip of SST with a grinder or other device.
      • Completely release the staked part of the lock nut before removing it.
      • Do not damage the threads of the shaft.
      GTY646251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

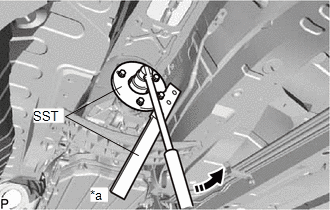

    2. Using SST and a 30 mm deep socket wrench, remove the lock nut.
      GTY651614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hold
      Turn
      • SST: 09330-00021
      • SST: 09950-30012
        1. 09955-03040
    3. Remove SST.
    4. Tap the automatic transmission flange yoke assembly with a plastic hammer to remove it.
    5. Using a screwdriver, remove the oil seal from the automatic transmission flange yoke assembly.
      GTY457655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Oil Seal
      NOTE:

      Do not damage the automatic transmission flange yoke assembly.

      HINT:

      Tape the screwdriver tip before use.

  3. REMOVE AUTOMATIC TRANSMISSION REAR OIL SEAL

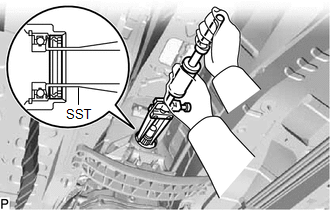

    1. Using SST, remove the automatic transmission rear oil seal.
      GTY626305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09308-00010
  4. INSTALL AUTOMATIC TRANSMISSION REAR OIL SEAL

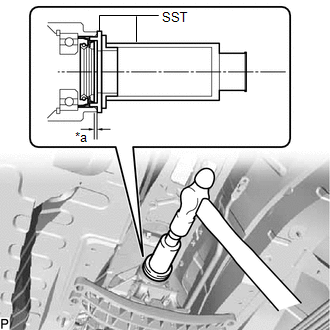

    1. Using SST and a hammer, install a new automatic transmission rear oil seal.
      GTY675813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Depth
      • SST: 09316-60011
        1. 09316-00011
        2. 09316-00041
      • SST: 09316-12010

      Standard Depth

      3.3 to 3.7 mm (0.130 to 0.145 in.)

    2. Coat the lip of the automatic transmission rear oil seal with MP grease.
  5. INSTALL AUTOMATIC TRANSMISSION FLANGE YOKE ASSEMBLY
    1. Using SST and a hammer, install a new oil seal.
      • SST: 09950-60010
        1. 09951-00370
      • SST: 09950-70010
        1. 09951-07150

      Standard Depth

      0 to 0.3 mm (0 to 0.0118 in.)

      GTY500632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Depth
    2. Coat the lip of the oil seal with MP grease.
    3. Install the automatic transmission flange yoke assembly.

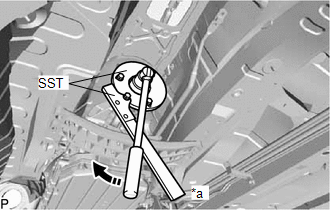

    4. Using SST and a 30 mm deep socket wrench, install a new lock nut.
      • SST: 09330-00021
      • SST: 09950-30012
        1. 09955-03040

      Torque: 135 N*m (1377 kgf*cm, 100 ft.*lbf)

      GTY637116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hold
      Turn
    5. Using a chisel and hammer, securely stake the lock nut.
  6. INSTALL PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY

    Refer to INSTALLATION [08/2015 - ]

  7. ADD AUTOMATIC TRANSMISSION FLUID

    Refer to ADJUSTMENT [08/2015 - 10/2017] , or refer to ADJUSTMENT [10/2017 - 09/2020] , or refer to ADJUSTMENT [09/2020 - ]
