Replacement [04/2013 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY

    Refer to REMOVAL [04/2013 - ]

  2. REMOVE AUTOMATIC TRANSMISSION FLANGE YOKE ASSEMBLY
    1. Using SST and a hammer, loosen the staked part of the lock nut.
      • SST: 09930-00010
      NOTE:
      • Be sure to use SST with the tapered surface facing the shaft.
      • Do not grind the tip of SST with a grinder or other device.
      • Completely loosen the staked part of the lock nut when removing it
      • Do not damage the threads of the shaft.
      GTY457776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach SST.
      • SST: 09330-00021
      • SST: 09950-30012
        1. 09955-03040
      GTY461992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

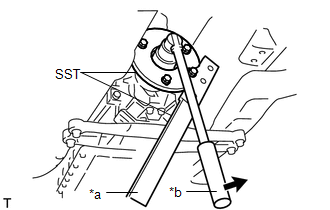

    3. Using SST and a 30 mm deep socket wrench, remove the lock nut.
      GTY461421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hold
      *b Turn
    4. Remove SST.
    5. Tap the automatic transmission flange yoke assembly with a plastic-faced hammer to remove it.
    6. Using a screwdriver, pry out the oil seal from the automatic transmission flange yoke assembly.
      GTY457655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Oil Seal
      NOTE:

      Do not damage the automatic transmission flange yoke assembly.

  3. REMOVE AUTOMATIC TRANSMISSION REAR OIL SEAL
    1. Using SST, tap out the automatic transmission rear oil seal.
      GTY460040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09308-00010
  4. INSTALL AUTOMATIC TRANSMISSION REAR OIL SEAL
    1. Coat the lip of a new automatic transmission rear oil seal with MP grease.

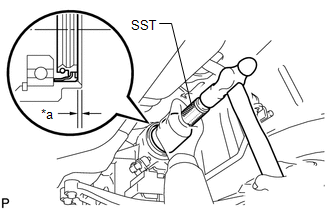

    2. Using SST and a hammer, tap in the automatic transmission rear oil seal.
      GTY456383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Oil Seal Depth
      • SST: 09214-76011

      Oil seal depth from flat end

      3.3 to 3.7 mm (0.130 to 0.145 in.)

  5. INSTALL AUTOMATIC TRANSMISSION FLANGE YOKE ASSEMBLY
    1. Coat the lip of a new oil seal with MP grease.
    2. Using SST and a hammer, tap in the oil seal.
      • SST: 09517-36010

      Oil seal drive in depth

      0 to 0.3 mm (0 to 0.0118 in.)

      GTY467868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Oil Seal
    3. Install the automatic transmission flange yoke assembly.
    4. Set SST.
      • SST: 09330-00021
      • SST: 09950-30012
        1. 09955-03040
      GTY468404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hold
      *b Turn
    5. Using SST and a 30 mm deep socket wrench, install and tighten a new lock nut.

      Torque: 135 N*m (1377 kgf*cm, 100 ft.*lbf)

    6. Using a chisel and hammer, securely stake the nut.
  6. INSTALL PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY

    Refer to INSTALLATION [04/2013 - ]
