Components [04/2013 - ]
WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

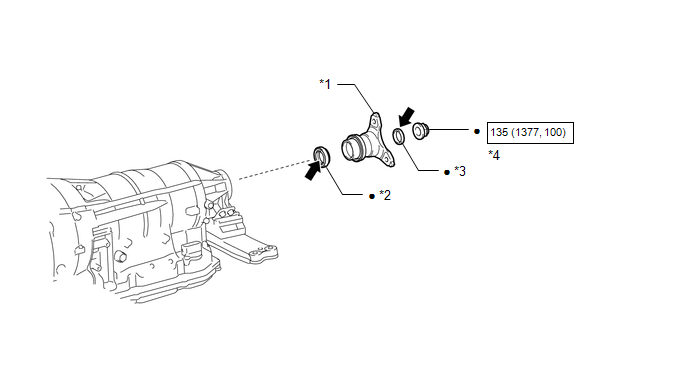

Fig 1: Automatic Transmission Rear Oil Seal (for 2GR) Replacement Components With Torque Specifications
| *1 | AUTOMATIC TRANSMISSION FLANGE YOKE ASSEMBLY | *2 | AUTOMATIC TRANSMISSION REAR OIL SEAL |
| *3 | OIL SEAL | *4 | LOCK NUT |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| MP Grease | - | - |
