Components [08/2015 - ]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
REAR SEAT CUSHION ASSEMBLY |
*2 |
REAR SEAT CUSHION LOCK HOOK |
| • |
Non-reusable part |
- |
- |

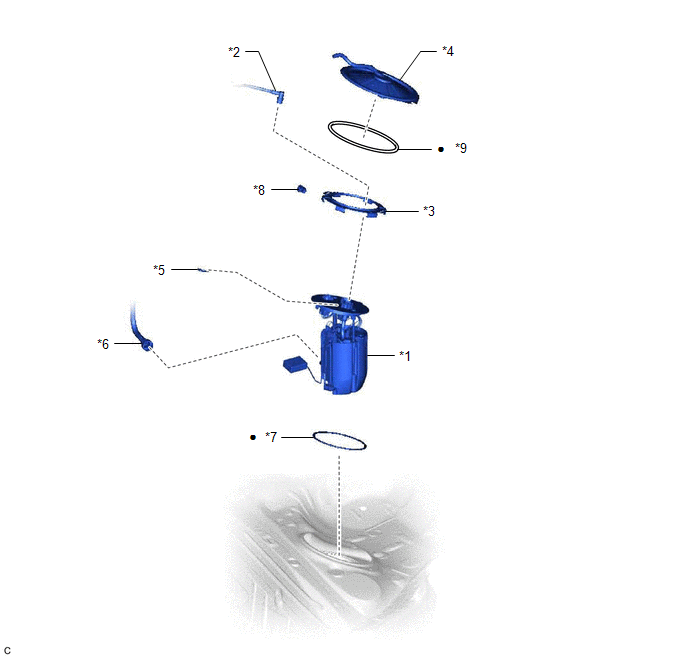

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY |
*2 |
FUEL TANK MAIN TUBE SUB-ASSEMBLY |
| *3 |
FUEL PUMP GAUGE RETAINER |
*4 |
REAR FLOOR SERVICE HOLE COVER |
| *5 |
TUBE JOINT CLIP |
*6 |
FUEL RETURN VENT TUBE SUB-ASSEMBLY |
| *7 |
FUEL SUCTION TUBE SET GASKET |
*8 |
NO. 1 FUEL TUBE CLAMP |
| *9 |
BUTYL TAPE |
- |
- |
| • |
Non-reusable part |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
JET PUMP |
*2 |
FUEL SUCTION PLATE SUB-ASSEMBLY |
| *3 |
FUEL PUMP |
*4 |
FUEL SENDER GAUGE ASSEMBLY |
| *5 |
FUEL FILTER |
*6 |
FUEL PUMP HARNESS |
| *7 |
FUEL PUMP SPACER |
*8 |
NO. 1 FUEL SUB-TANK |
| *9 |
FUEL SUCTION PLATE SHAFT |
*10 |
FUEL PUMP FILTER |
| *11 |
SPRING |
*12 |
FUEL PUMP FILTER HOSE |
| *13 |
E-RING |
*14 |
O-RING |
| • |
Non-reusable part |
- |
- |
