Installation [08/2015 - 09/2020]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FUEL PUMP CONTROL ECU BRACKET
1. Install the fuel pump control ECU bracket with the 2 screws.
  Torque: 3.0 N.m (31 kgf/cm, 27 in.lbf)

INSTALL FUEL PUMP CONTROL ECU

Install the fuel pump control ECU to the vehicle body with the 2 nuts.
Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

NOTE:
Do not reuse the fuel pump control ECU if it has been dropped or subjected to a severe impact.
Connect the 2 fuel pump control ECU connectors.

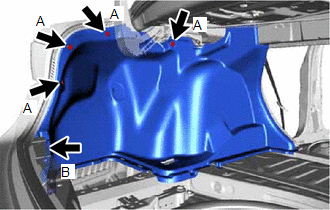

Install the 4 clips (A).

Install a new clip (B).
Install the rope hook assembly with the bolt.
Engage the 2 claws to close the cover.

INSTALL FRONT UPPER LUGGAGE COMPARTMENT TRIM COVER
Refer to PROCEDURE - Step 6
INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
Refer to PROCEDURE - Step 2
INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER
Refer to PROCEDURE - Step 12
INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER
Refer to PROCEDURE - Step 13
INSTALL DECK SIDE TRIM BOX RH
Refer to PROCEDURE - Step 14
INSTALL DECK SIDE TRIM BOX LH
Refer to PROCEDURE - Step 15
INSTALL SPARE WHEEL COVER TRAY RH
Refer to PROCEDURE - Step 16
INSTALL SPARE WHEEL COVER TRAY LH
Refer to PROCEDURE - Step 17
INSTALL LUGGAGE COMPARTMENT FLOOR MAT
Refer to PROCEDURE - Step 18
