Removal [09/2020 - ]: Procedure
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 3
- DRAIN ENGINE COOLANT
Refer to PROCEDURE - Step 2
- REMOVE INTAKE AIR SOUND CREATOR (w/ INTAKE AIR SOUND CREATOR)
HINT:
Only perform this procedure when replacement of the intake air sound creator is necessary.
- REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

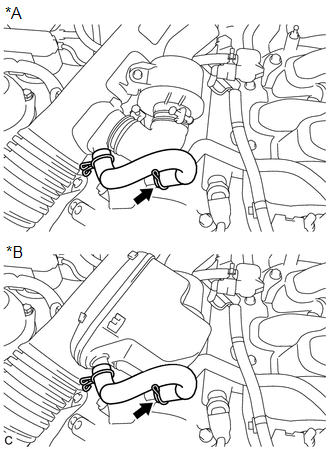

- Slide the clip and disconnect the No. 2 ventilation hose from the cylinder head cover sub-assembly.
*A w/ Intake Air Sound Creator *B w/o Intake Air Sound Creator - Disconnect the mass air flow meter sub-assembly connector.
- Disconnect the wire harness clamp from the air cleaner cap with air cleaner hose.
- Disengage the clamp to disconnect the fuel vapor feed hose from the air cleaner cap with air cleaner hose.

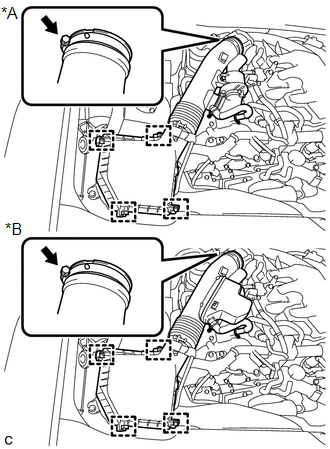

- Release the 4 clamps.
*A w/ Intake Air Sound Creator *B w/o Intake Air Sound Creator - Loosen the hose clamp and remove the air cleaner cap with air cleaner hose from the throttle body with motor assembly.
- Slide the clip and disconnect the No. 2 ventilation hose from the cylinder head cover sub-assembly.
- REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

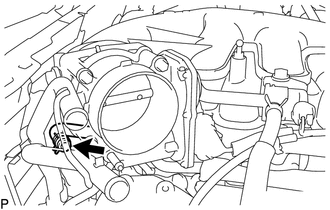

- Slide the clip and disconnect the No. 16 water by-pass hose from the throttle body with motor assembly.
- Disconnect the throttle body with motor assembly connector.

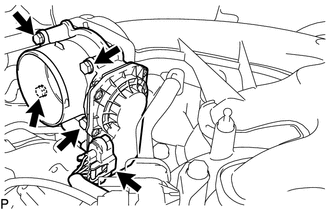

- Remove the 4 bolts and separate the throttle body with motor assembly from the intake air surge tank assembly.
- Slide the clip and disconnect the water by-pass hose to remove the throttle body with motor assembly.

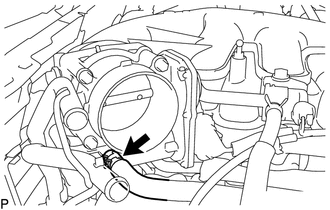

- Slide the clip and disconnect the No. 16 water by-pass hose from the throttle body with motor assembly.

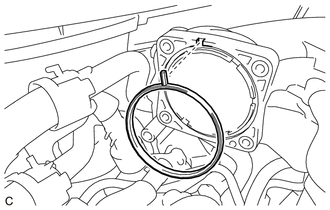

- REMOVE THROTTLE BODY GASKET
