Components [10/2017 - 09/2020]
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

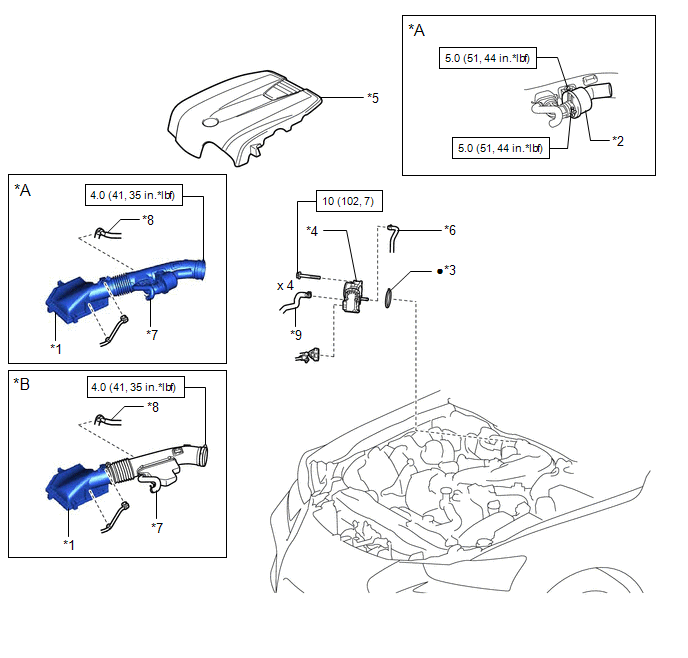

| *A | w/ Intake Air Sound Creator | *B | w/o Intake Air Sound Creator |
| *1 | AIR CLEANER CAP WITH AIR CLEANER HOSE | *2 | INTAKE AIR SOUND CREATOR |
| *3 | THROTTLE BODY GASKET | *4 | THROTTLE BODY WITH MOTOR ASSEMBLY |
| *5 | V-BANK COVER SUB-ASSEMBLY | *6 | WATER BY-PASS HOSE |
| *7 | NO. 2 VENTILATION HOSE | *8 | FUEL VAPOR FEED HOSE |
| *9 | NO. 16 WATER BY-PASS HOSE | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
