Removal [10/2017 - 09/2020]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT SEAT ASSEMBLY LH (for AWD)

    Refer to REMOVAL [04/2013 - ]

  2. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [10/2016 - 09/2020]

  3. DISCONNECT HEATED OXYGEN SENSOR CONNECTOR
    1. for Bank 1:
      1. Turn back the floor carpet.
      2. Disconnect the heated oxygen sensor connector.
        GTY496310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Disengage the clamp.
    2. for Bank 2:
      1. Turn back the floor carpet.
      2. Disconnect the heated oxygen sensor connector.
        GTY819322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A for 2WD
        *B for AWD
      3. for 2WD:
        1. Disengage the clamp.
  4. REMOVE HEATED OXYGEN SENSOR
    1. for Bank 1:
      1. Disconnect the heated oxygen sensor grommet from the vehicle body.
        GTY776886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Grommet
      2. Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly (TWC: rear catalyst).
        • SST: 09224-00012
        GTY781325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:

        If the heated oxygen sensor has been struck or dropped, replace it.

    2. for Bank 2 (for 2WD):
      1. Disconnect the heated oxygen sensor grommet from the vehicle body.
        GTY796731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Grommet
      2. Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly (TWC: rear catalyst).
        GTY833073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        • SST: 09224-00012
        NOTE:

        If the heated oxygen sensor has been struck or dropped, replace it.

    3. for Bank 2 (for AWD with Front Floor Cover LH):
      1. Disengage the 6 clips and remove the front floor cover LH.
        GTY460731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect the heated oxygen sensor grommet from the vehicle body.
        GTY782327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Grommet
      3. Disengage the 3 clamps from the vehicle body.
      4. Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly (TWC: rear catalyst).
        GTY470437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        • SST: 09224-00012
        NOTE:

        If the heated oxygen sensor has been struck or dropped, replace it.

    4. for Bank 2 (for AWD without Front Floor Cover LH):

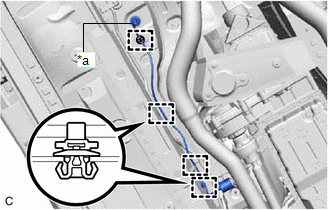

      1. Disconnect the heated oxygen sensor grommet from the vehicle body.
        GTY776649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Grommet
      2. Disengage the 4 clamps from the vehicle body.
      3. Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly (TWC: rear catalyst).
        GTY470437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        • SST: 09224-00012
        NOTE:

        If the heated oxygen sensor has been struck or dropped, replace it.
