Components [09/2020 - ]

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

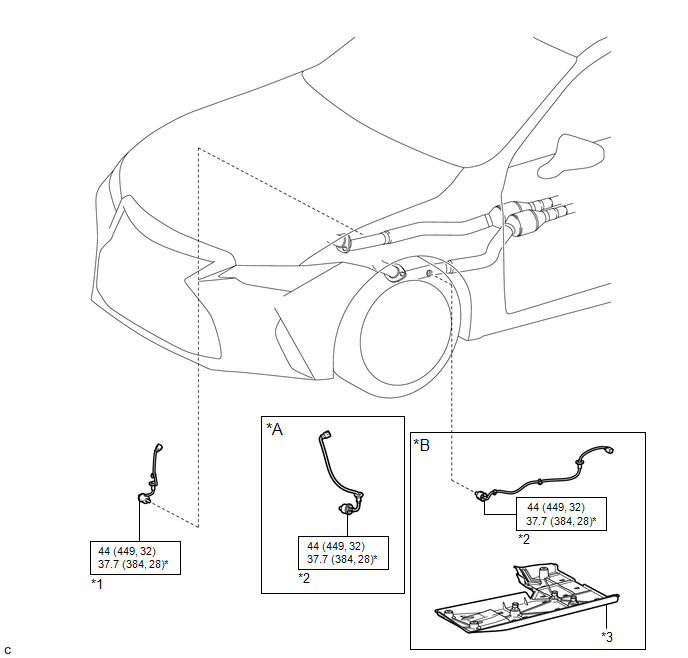

Fig 1: Heated Oxygen Sensor Replacement Components With Torque Specifications [09/2020 - ]

*A	for 2WD	*B	for AWD
*1	HEATED OXYGEN SENSOR (for Bank 1)	*2	HEATED OXYGEN SENSOR (for Bank 2)
*3	FRONT FLOOR COVER LH	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with SST
