Removal [10/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    Refer to REMOVAL [10/2017 - ]

  2. REMOVE ENGINE COOLANT TEMPERATURE SENSOR
    1. Disconnect the engine coolant temperature sensor connector.

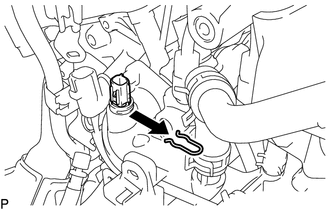

    2. Remove the clip and engine coolant temperature sensor.
      GTY658592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If the engine coolant temperature sensor has been struck or dropped, replace it.
