Removal [10/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 3 [09/2020 - ]

  2. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    See step  4 [10/2017 - 09/2020], or see step  4 [09/2020 - ]

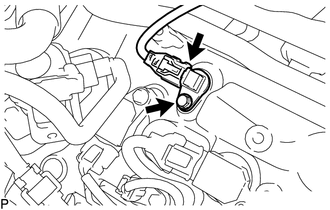

  3. REMOVE VVT SENSOR (for Intake Side of Bank 1)
    1. Disconnect the VVT sensor connector.
      GTY682649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor from the cylinder head cover sub-assembly.

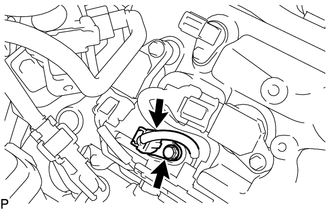

  4. REMOVE VVT SENSOR (for Exhaust Side of Bank 1)
    1. Disconnect the VVT sensor connector.
      GTY658585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor from the cylinder head cover sub-assembly.
  5. DISCONNECT ENGINE WIRE

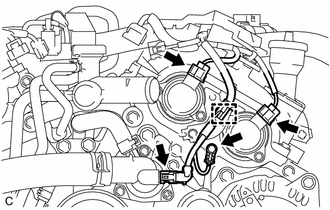

    1. Disengage the clamp.
      GTY825732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 2 camshaft timing oil control solenoid assembly connectors and water inlet with thermostat sub-assembly connector.
    3. Remove the bolt to disconnect the engine wire from the timing chain cover assembly.

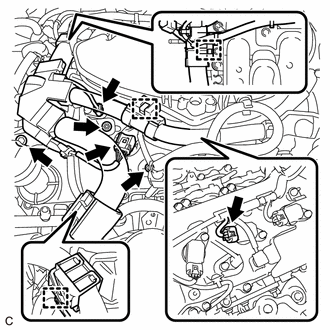

    4. Disengage the 3 clamps.
      GTY804267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 2 nuts to disconnect the engine wire from the cylinder head cover sub-assembly LH.
    6. Disconnect the 2 VVT sensor connectors and 2 ignition coil assembly connectors.

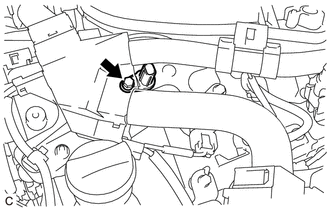

  6. REMOVE VVT SENSOR (for Intake Side of Bank 2)
    1. Remove the bolt and VVT sensor from the cylinder head cover sub-assembly LH.
      GTY833651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

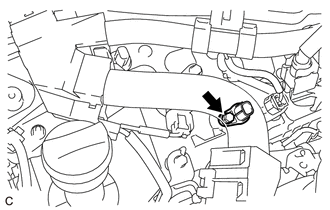

  7. REMOVE VVT SENSOR (for Exhaust Side of Bank 2)
    1. Remove the bolt and VVT sensor from the cylinder head cover sub-assembly LH.
      GTY833653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
