Removal [10/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 3 [09/2020 - ]

  2. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 2

  3. REMOVE NO. 1 RADIATOR HOSE

    Refer to PROCEDURE - Step 10

  4. REMOVE WATER OUTLET SUB-ASSEMBLY

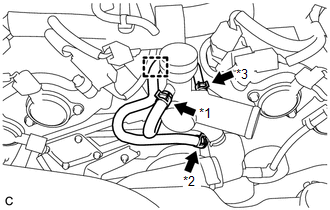

    1. Slide the clip and disconnect the No. 6 water by-pass hose from the water outlet sub-assembly.
      GTY807855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 6 Water By-pass Hose
      *2 No. 15 Water By-pass Hose
      *3 No. 2 Water By-pass Hose
    2. Slide the clip and disconnect the No. 15 water by-pass hose from the water inlet sub-assembly with thermostat.
    3. Disengage the clamp to separate the No. 15 water by-pass hose from the water outlet sub-assembly.
    4. Slide the clip and disconnect the No. 2 water by-pass hose from the water outlet sub-assembly.

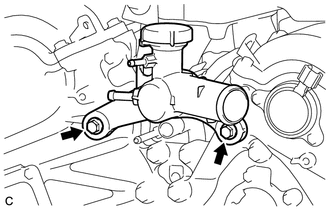

    5. Remove the 2 bolts and water outlet sub-assembly from the timing chain cover assembly.
      GTY803186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

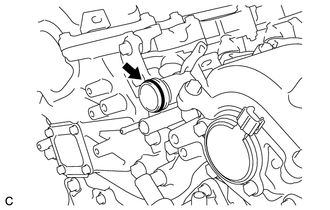

    6. Remove the O-ring from the No. 1 water outlet pipe.
      GTY803189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 1)

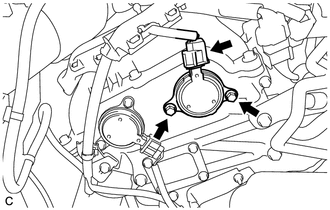

    1. Disconnect the camshaft timing oil control solenoid assembly connector.
      GTY803203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and camshaft timing oil control solenoid assembly from the timing chain cover assembly.
      NOTE:

      If the camshaft timing oil control solenoid assembly has been struck or dropped, replace it.

    3. Remove the O-ring from the camshaft timing oil control solenoid assembly.
      NOTE:
      • If the O-ring comes off in the timing chain cover assembly, make sure to remove it.
      • Do not drop the O-ring into the timing chain cover assembly.
  6. REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 1)

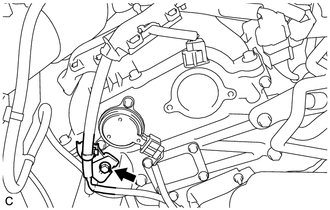

    1. Remove the bolt and separate the wire harness clamp bracket from the timing chain cover assembly.
      GTY803194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

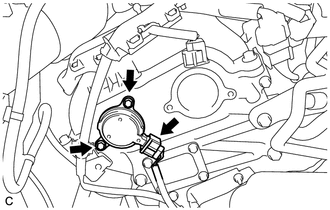

    2. Disconnect the camshaft timing oil control solenoid assembly connector.
      GTY803192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts and camshaft timing oil control solenoid assembly from the timing chain cover assembly.
      NOTE:

      If the camshaft timing oil control solenoid assembly has been struck or dropped, replace it.

    4. Remove the O-ring from the camshaft timing oil control solenoid assembly.
      NOTE:
      • If the O-ring comes off in the timing chain cover assembly, make sure to remove it.
      • Do not drop the O-ring into the timing chain cover assembly.
  7. REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 2)

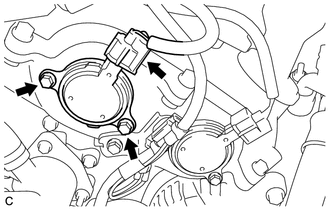

    1. Disconnect the camshaft timing oil control solenoid assembly connector.
      GTY803188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and camshaft timing oil control solenoid assembly from the timing chain cover assembly.
      NOTE:

      If the camshaft timing oil control solenoid assembly has been struck or dropped, replace it.

    3. Remove the O-ring from the camshaft timing oil control solenoid assembly.
      NOTE:
      • If the O-ring comes off in the timing chain cover assembly, make sure to remove it.
      • Do not drop the O-ring into the timing chain cover assembly.
  8. REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 2)

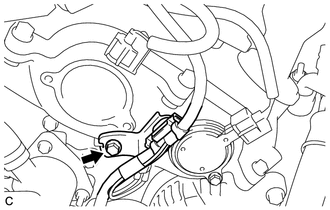

    1. Remove the bolt and separate the wire harness clamp bracket from the timing chain cover assembly.
      GTY803190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

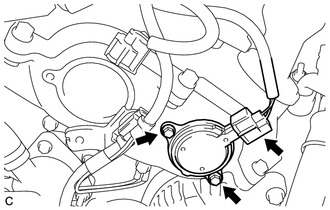

    2. Disconnect the camshaft timing oil control solenoid assembly connector.
      GTY803178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts and camshaft timing oil control solenoid assembly from the timing chain cover assembly.
      NOTE:

      If the camshaft timing oil control solenoid assembly has been struck or dropped, replace it.

    4. Remove the O-ring from the camshaft timing oil control solenoid assembly.
      NOTE:
      • If the O-ring comes off in the timing chain cover assembly, make sure to remove it.
      • Do not drop the O-ring into the timing chain cover assembly.
