Components [10/2017 - ]
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

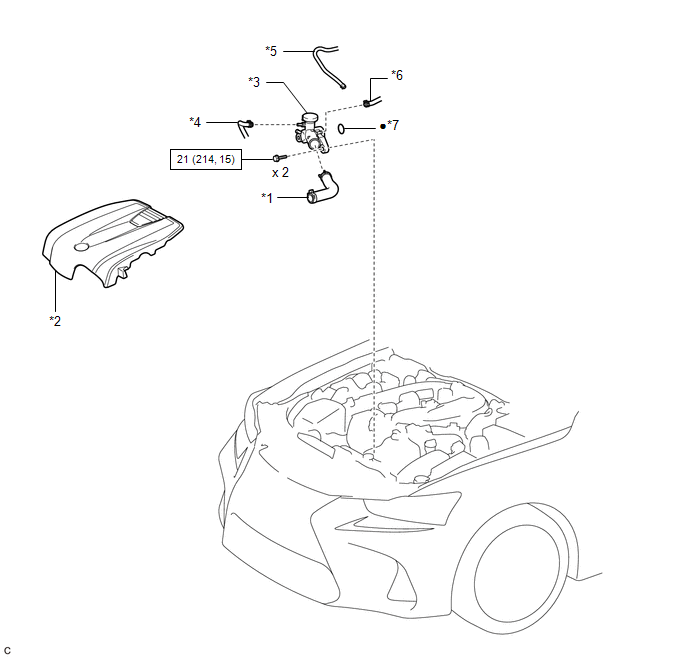

| *1 |
NO. 1 RADIATOR HOSE |
*2 |
V-BANK COVER SUB-ASSEMBLY |
| *3 |
WATER OUTLET SUB-ASSEMBLY |
*4 |
NO. 6 WATER BY-PASS HOSE |
| *5 |
NO. 15 WATER BY-PASS HOSE |
*6 |
NO. 2 WATER BY-PASS HOSE |
| *7 |
O-RING |
- |
- |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

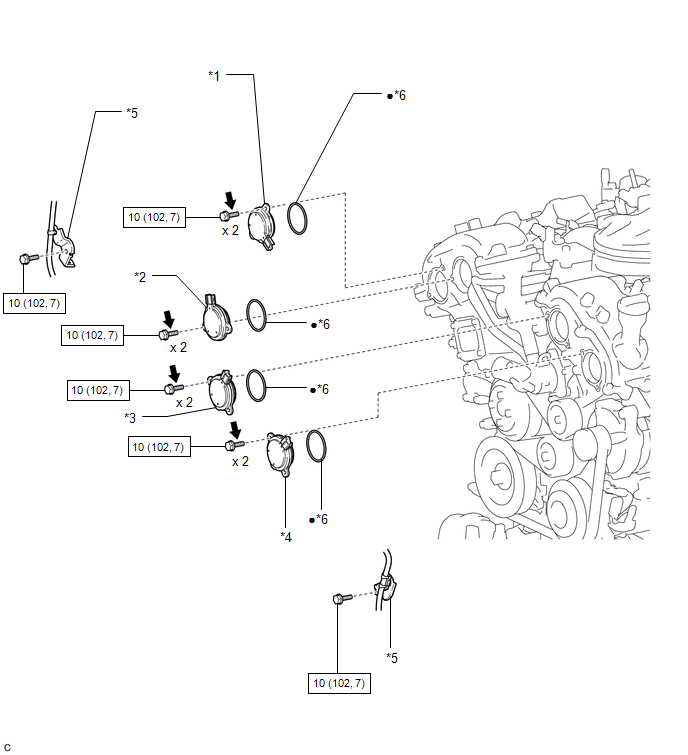

| *1 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 1) |
*2 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 1) |
| *3 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 2) |
*4 |
CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 2) |
| *5 |
WIRE HARNESS CLAMP BRACKET |
*6 |
O-RING |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
 |
Adhesive 1324 |
* |
Precoated part |
