Removal [10/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE ENGINE UNDER COVER
Refer to PROCEDURE - Step 10 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 10 [09/2020 - ]
REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY
Refer to REMOVAL [10/2017 - ]

SET NO. 1 CYLINDER TO TDC/COMPRESSION

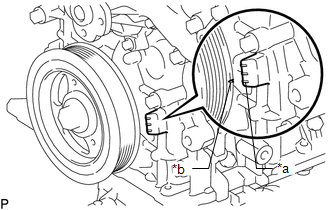

Turn the crankshaft clockwise to align the timing mark (cutout) on the crankshaft pulley with the "0" timing mark on the timing chain cover assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	"0" Timing Mark
*b	Timing Mark (Cutout)

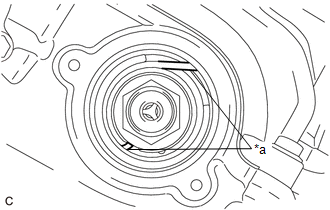

Check that the ends of the spring inside of the camshaft timing exhaust gear assembly are as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Spring End

HINT:

If the ends of the spring are not as shown in the illustration, rotate the crankshaft clockwise 360° and align the timing marks again.

REMOVE CAMSHAFT TIMING GEAR BOLT

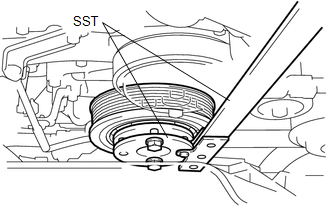

Using SST, hold the crankshaft pulley.

SST: 09213-54015
1. 91651-60855
SST: 09330-00021

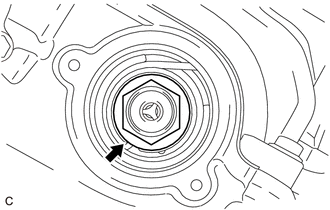

Remove the camshaft timing gear bolt.

NOTE:

If the camshaft timing gear bolt has been struck or dropped, replace it.
