Components [09/2020 - ]

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

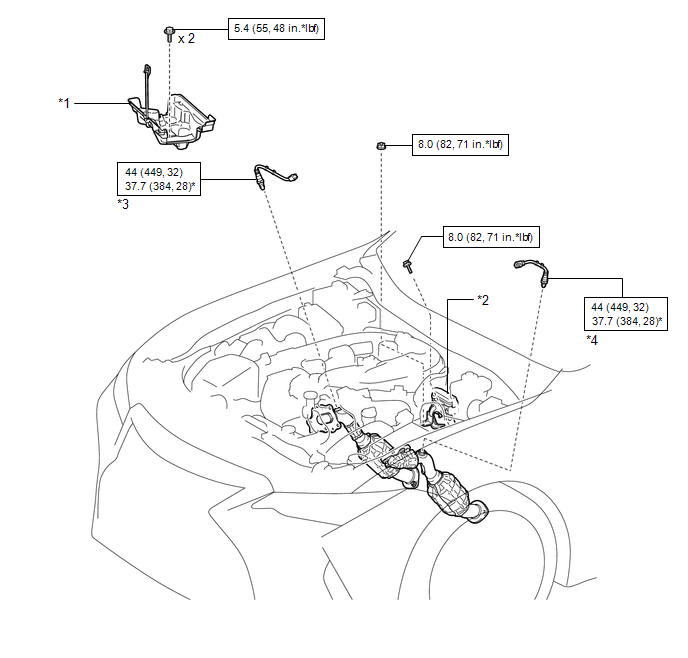

Fig 1: Air Fuel Ratio Sensor Replacement Components With Torque Specifications [09/2020 - ]

*1	BATTERY TRAY	*2	NO. 3 ENGINE ROOM RELAY BLOCK
*3	AIR FUEL RATIO SENSOR (for Bank 1)	*4	AIR FUEL RATIO SENSOR (for Bank 2)
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with SST
