Section 53 (Charging System (4GR-FSE) - Diagnostics & Symptom Tests)
>>
Charging System
>>

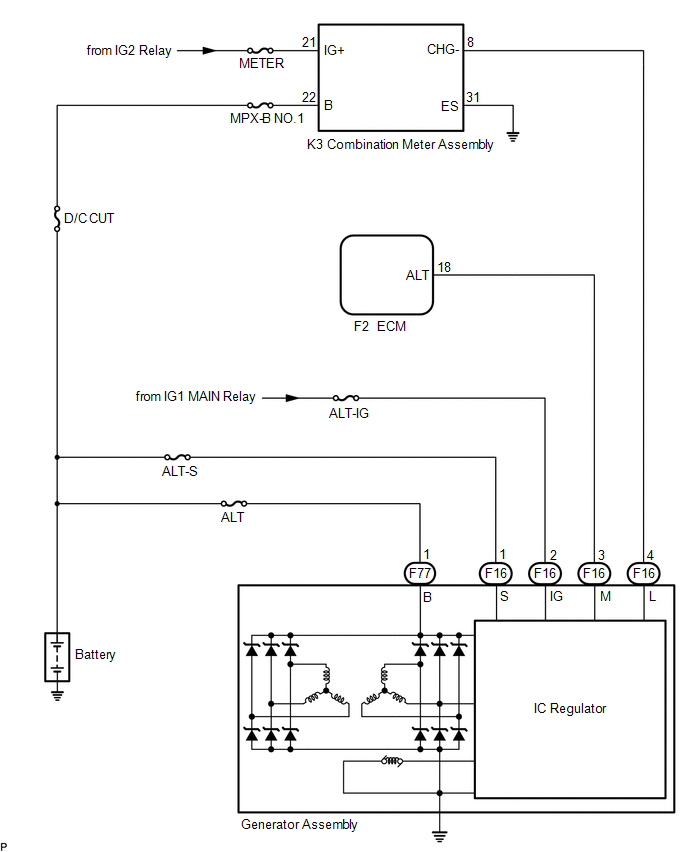

System Diagram [04/2013 - 08/2015]
>>
System Diagram [04/2013 - 08/2015]
System Diagram [04/2013 - 08/2015]
