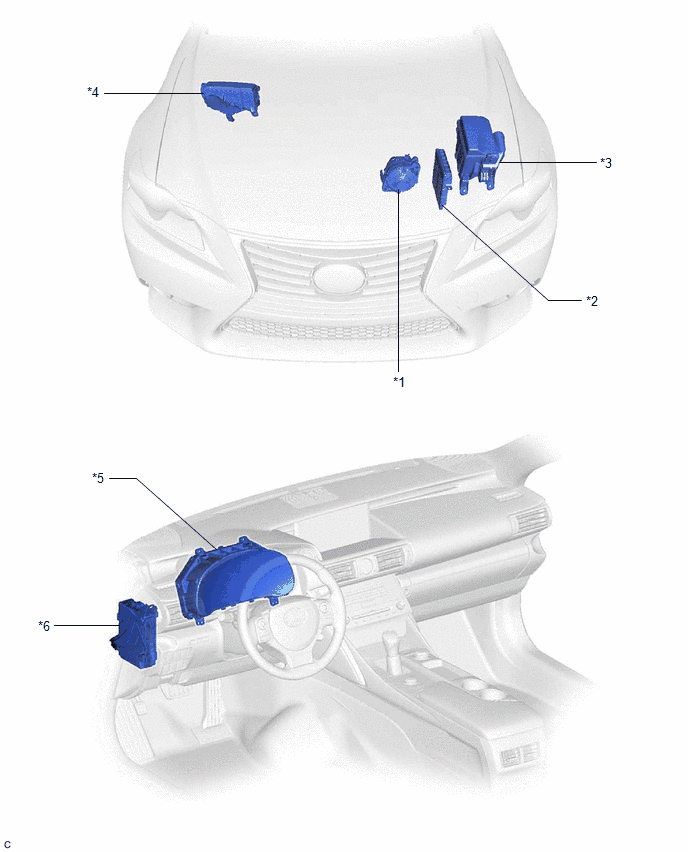

Parts Location [04/2013 - 08/2015]: Illustration
WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
GENERATOR ASSEMBLY |
*2 |
ECM |
| *3 |
NO. 1 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY
- ALT FUSE
- ALT-S FUSE
- D/C CUT FUSE
- MPX-B NO. 1 FUSE |
*4 |
NO. 2 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY
- METER FUSE |
| *5 |
COMBINATION METER ASSEMBLY |
*6 |
COWL SIDE JUNCTION BLOCK LH
- LH ALT-IG FUSE |
