Components [10/2023 - ]

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

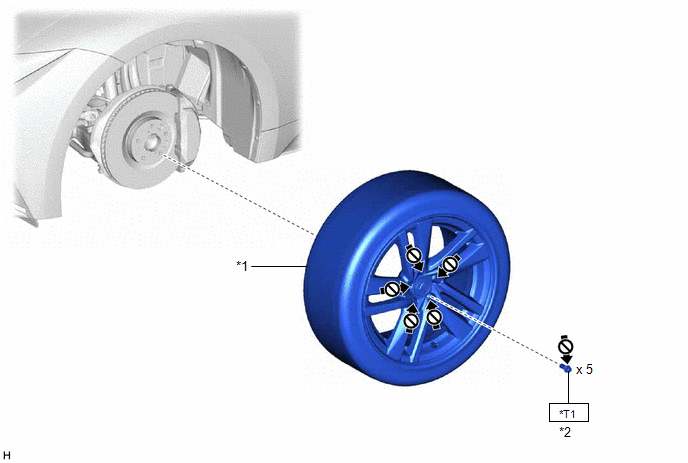

Fig 1: Tire And Wheel Replacement Components With Torque Specifications [10/2023 - ]
GTY1216920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 WHEEL ASSEMBLY *2 AXLE HUB BOLT
N.m (kgf/cm, ft.lbf): Specified torque Do not apply lubricants
*T1 Specified tightening torque:
  1. 140 N.m (1428 kgf/cm, 103 ft.lbf)
NOTE:

Make sure to perform an inspection of the axle hub bolts before installation.

 - -
