System Diagram [09/2020 - ]

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

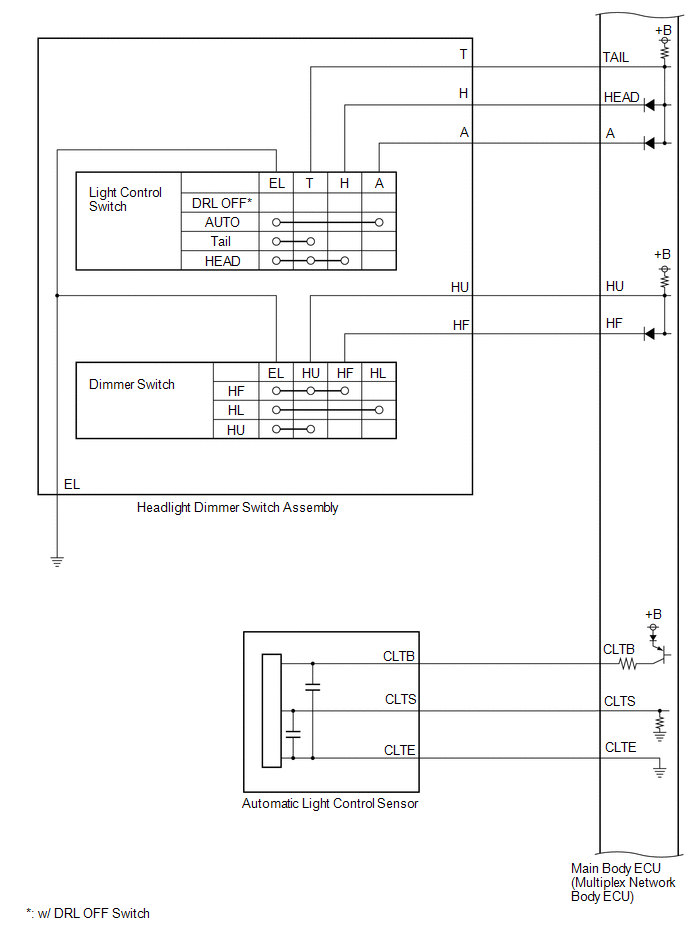

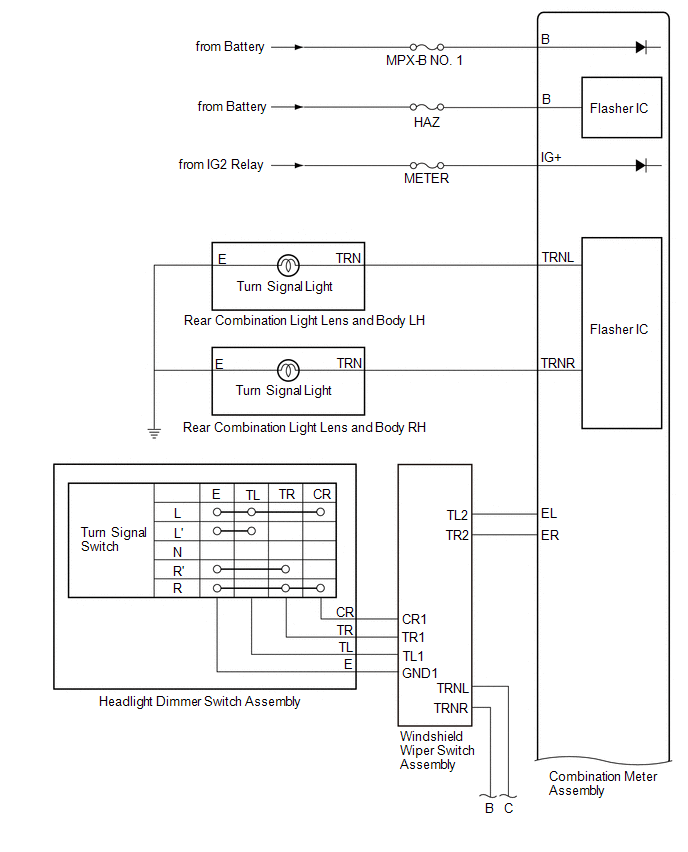

Fig 1: Lighting System Diagram (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

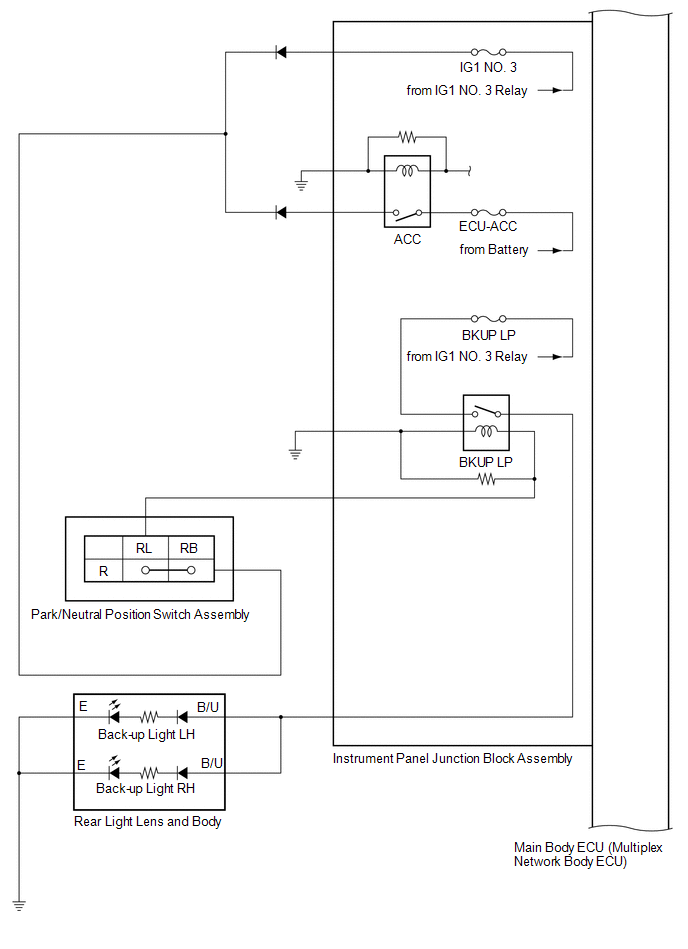

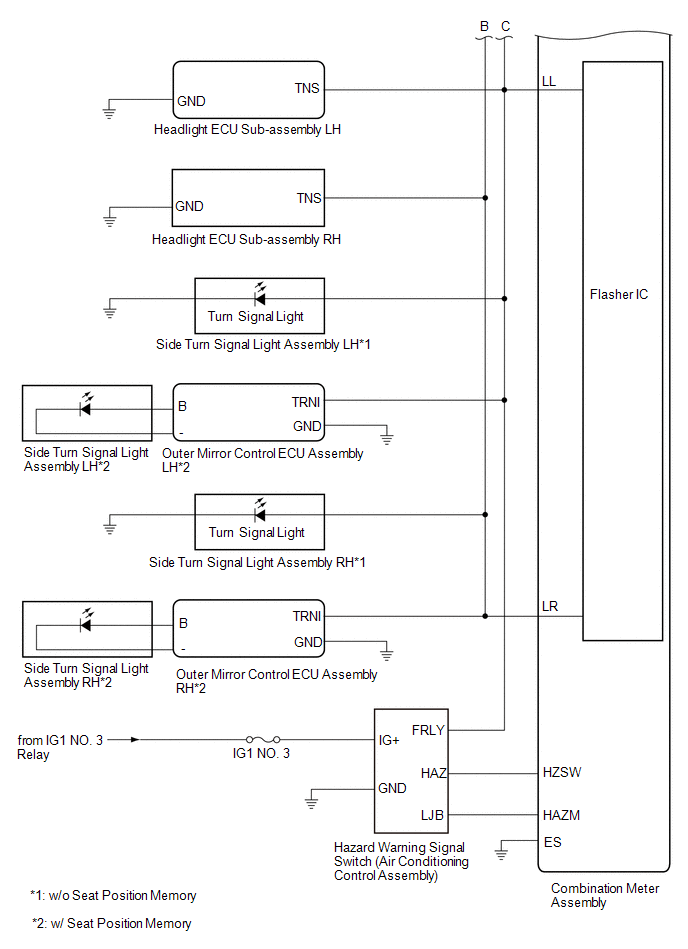

Fig 2: Lighting System Diagram (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

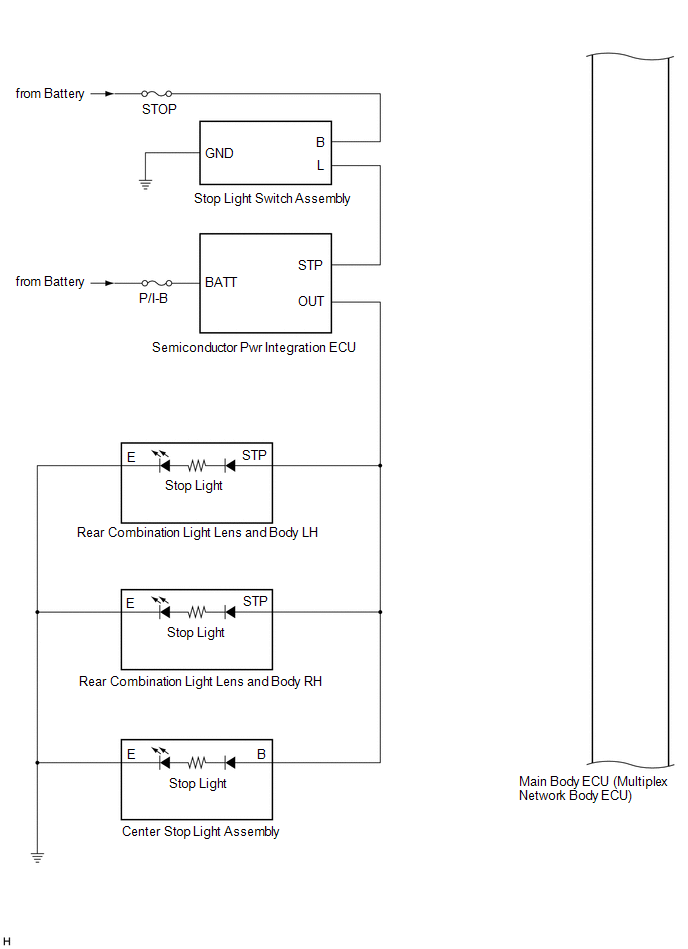

Fig 3: Lighting System Diagram (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

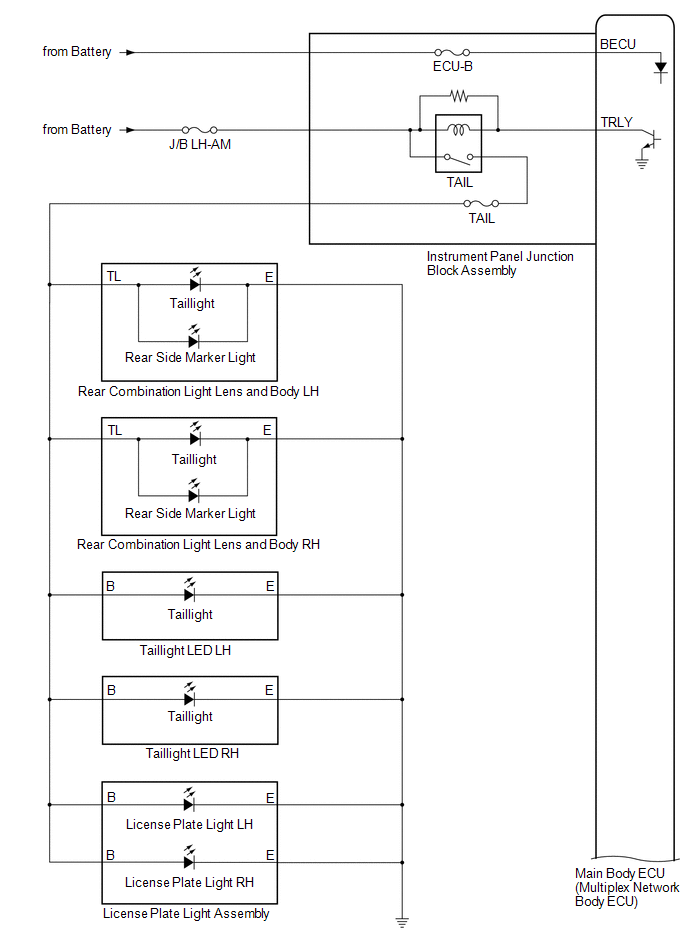

Fig 4: Lighting System Diagram (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

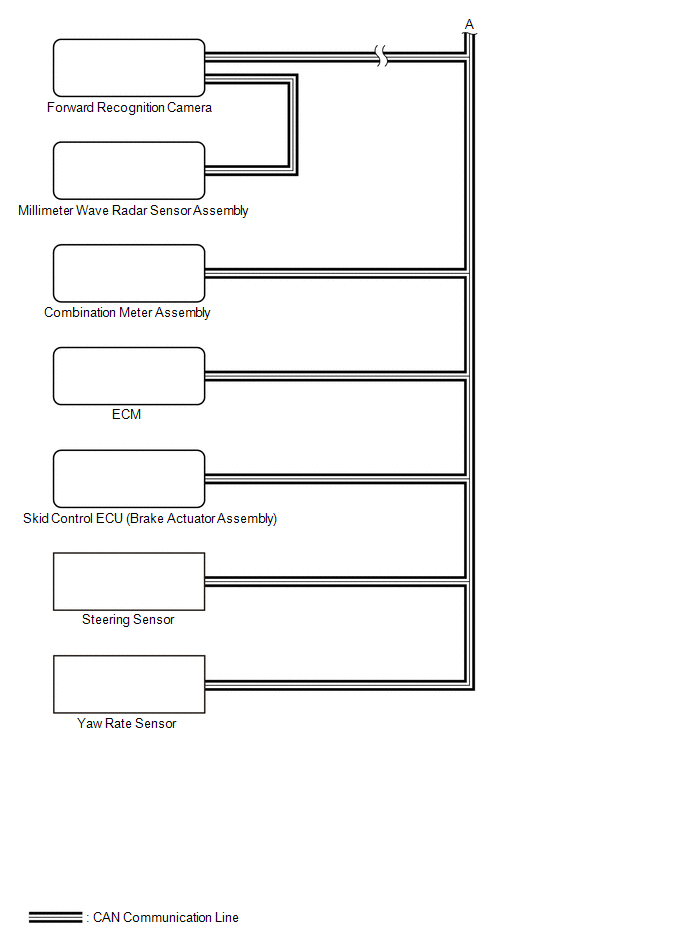

Fig 5: Lighting System Diagram (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

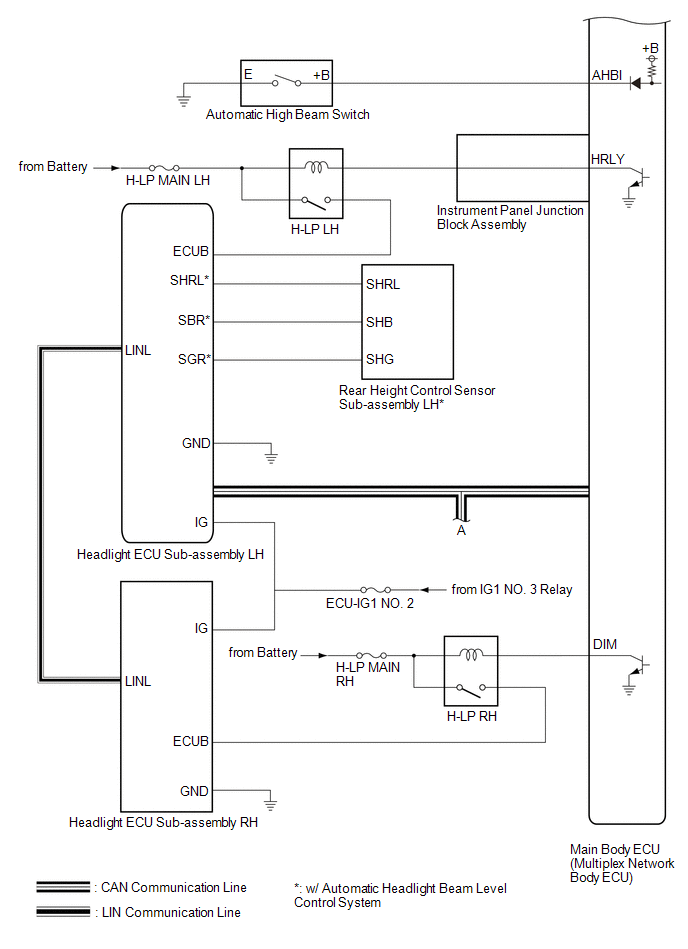

Fig 6: Lighting System Diagram (6 Of 8)

Fig 7: Lighting System Diagram (7 Of 8)

Fig 8: Lighting System Diagram (8 Of 8)

HEADLIGHT ASSEMBLY CIRCUIT (for Triple Beam Headlight)

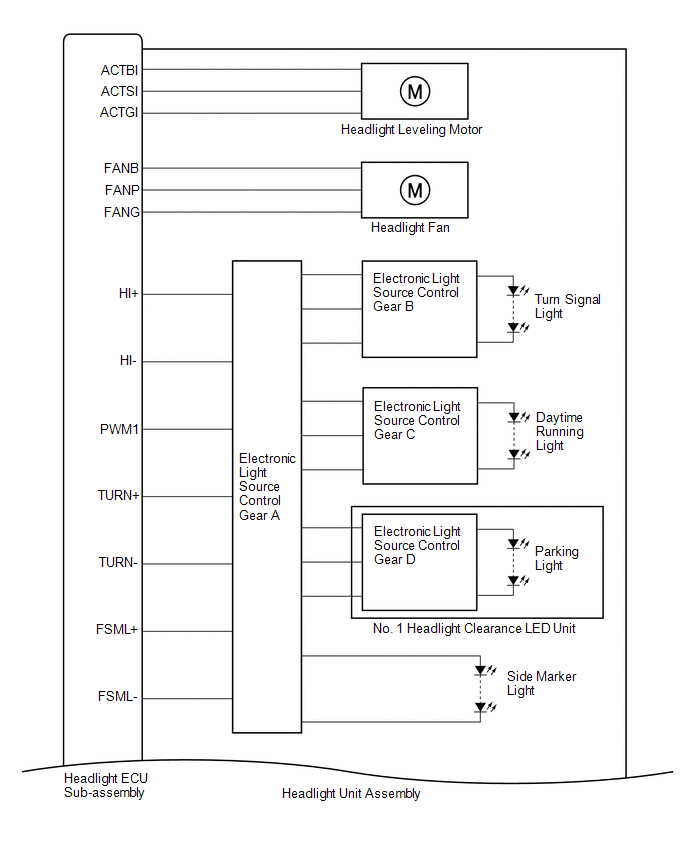

Fig 9: Lighting System Diagram - Headlight Assembly Circuit (For Triple Beam Headlight) (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

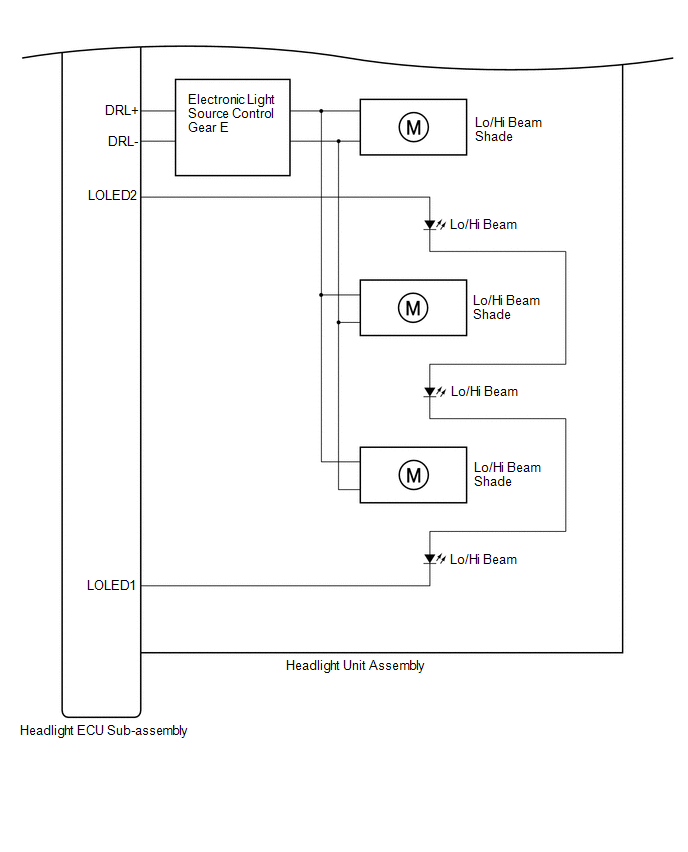

Fig 10: Lighting System Diagram - Headlight Assembly Circuit (For Triple Beam Headlight) (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HEADLIGHT ASSEMBLY CIRCUIT (for Single Beam Headlight)

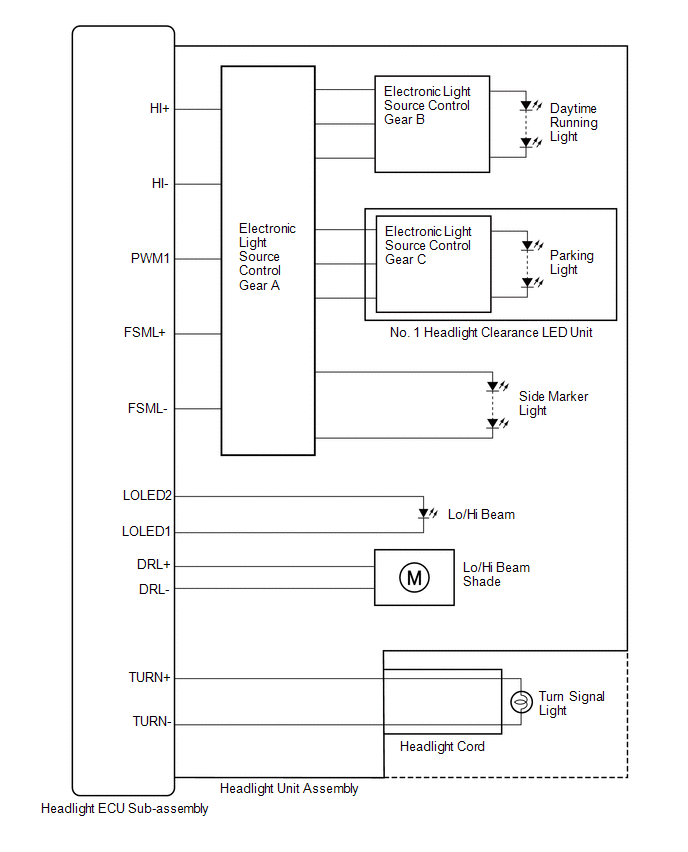

Fig 11: Lighting System Diagram - Headlight Assembly Circuit (For Single Beam Headlight)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
