System Diagram [04/2013 - 10/2016]

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

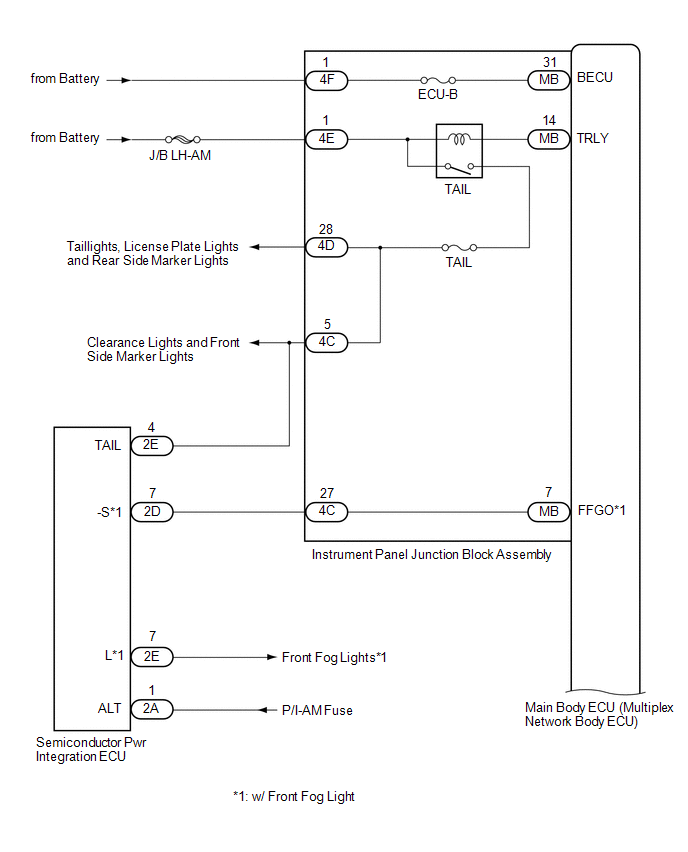

Fig 1: Lighting System Diagram (1 Of 6)
GTY458128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

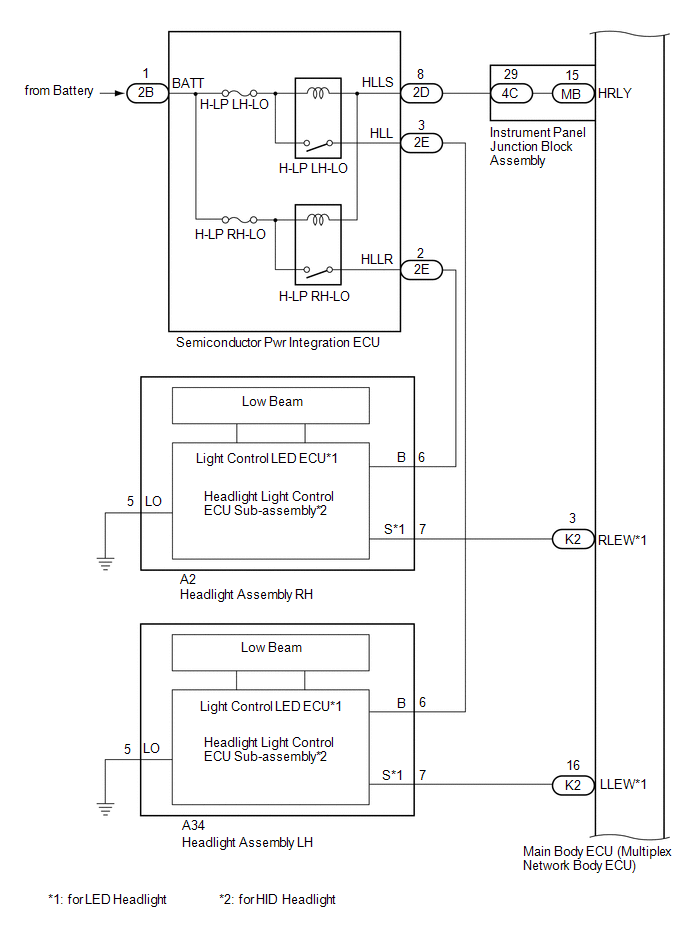

Fig 2: Lighting System Diagram (2 Of 6)
GTY458568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

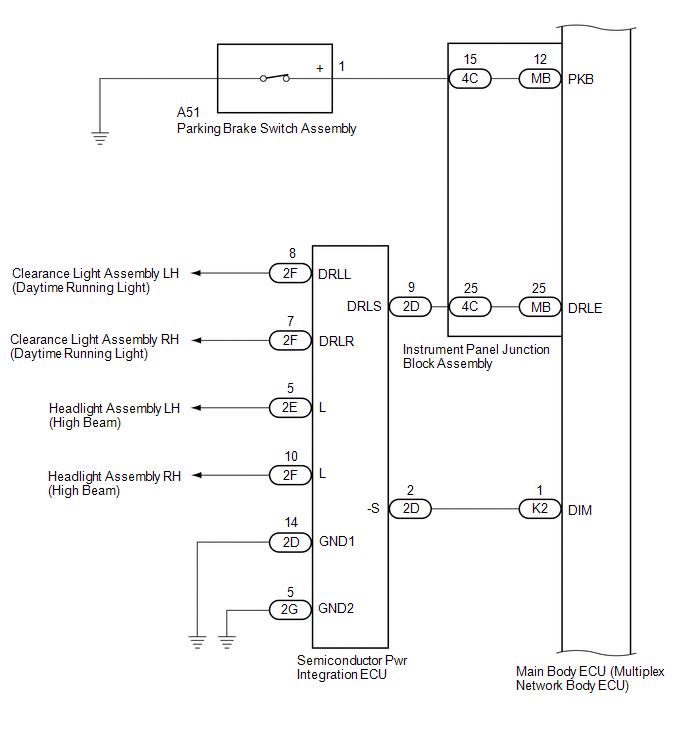

Fig 3: Lighting System Diagram (3 Of 6)
GTY468914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

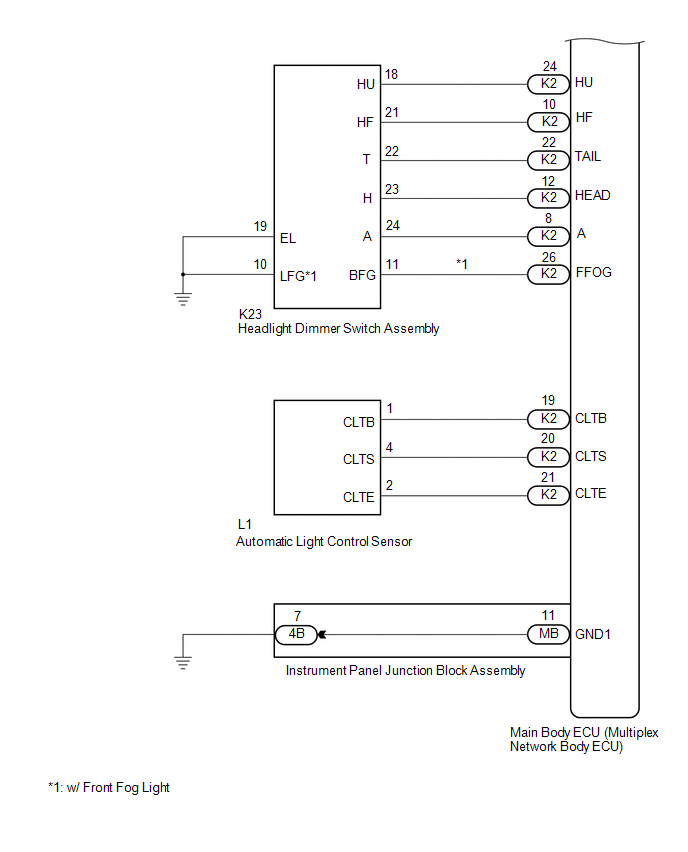

Fig 4: Lighting System Diagram (4 Of 6)
GTY462952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

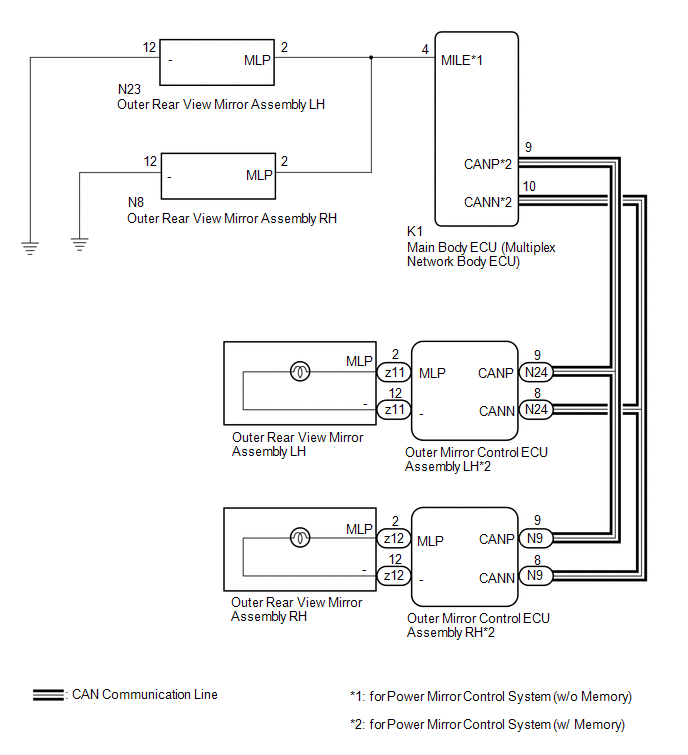

Fig 5: Lighting System Diagram (5 Of 6)
GTY469764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: Lighting System Diagram (6 Of 6)
GTY469237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
