Parts Location [04/2013 - 10/2016]: Illustration
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

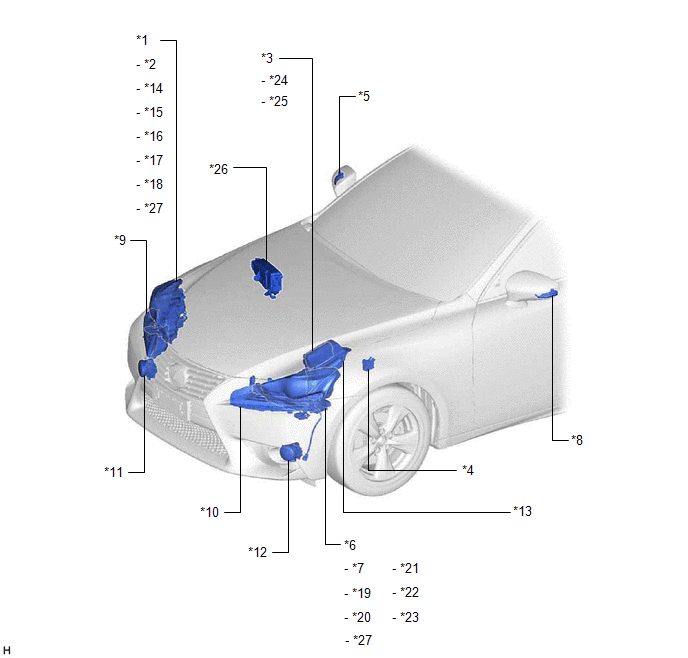

| *1 | HEADLIGHT ASSEMBLY RH | *2 | HIGH INTENSITY DISCHARGE HEADLIGHT BULB RH (for HID Headlight) |
| *3 | SEMICONDUCTOR PWR INTEGRATION ECU | *4 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY |
| *5 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH | *6 | HEADLIGHT ASSEMBLY LH |
| *7 | HIGH INTENSITY DISCHARGE HEADLIGHT BULB LH (for HID Headlight) | *8 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
| *9 | CLEARANCE LIGHT ASSEMBLY RH - CLEARANCE LIGHT RH - DAYTIME RUNNING LIGHT RH |
*10 | CLEARANCE LIGHT ASSEMBLY LH - CLEARANCE LIGHT LH - DAYTIME RUNNING LIGHT LH |
| *11 | FOG LIGHT ASSEMBLY RH | *12 | FOG LIGHT ASSEMBLY LH |
| *13 | NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY - STOP FUSE |
*14 | HEADLIGHT UNIT RH |
| *15 | HEADLIGHT CORD RH | *16 | HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY RH (for HID Headlight) |
| *17 | TURN SIGNAL LIGHT RH | *18 | SIDE MARKER LIGHT RH |
| *19 | HEADLIGHT UNIT LH | *20 | HEADLIGHT CORD LH |
| *21 | HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY LH (for HID Headlight) | *22 | TURN SIGNAL LIGHT LH |
| *23 | SIDE MARKER LIGHT LH | *24 | H-LP LH-LO FUSE |
| *25 | H-LP RH-LO FUSE | *26 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - P/I-AM FUSE |
| *27 | LIGHT CONTROL LED ECU (for LED Headlight) | - | - |

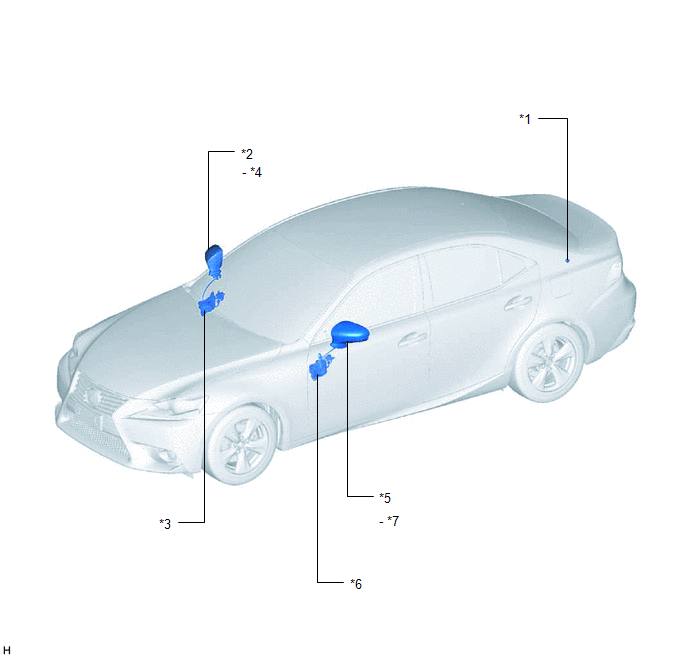

| *1 | RADIO SETTING CONDENSER | *2 | OUTER REAR VIEW MIRROR ASSEMBLY RH |
| *3 | OUTER MIRROR CONTROL ECU ASSEMBLY RH (for Power Mirror Control System (w/ Memory)) | *4 | DOOR MIRROR FOOT LIGHT RH |
| *5 | OUTER REAR VIEW MIRROR ASSEMBLY LH | *6 | OUTER MIRROR CONTROL ECU ASSEMBLY LH (for Power Mirror Control System (w/ Memory)) |
| *7 | DOOR MIRROR FOOT LIGHT LH | - | - |

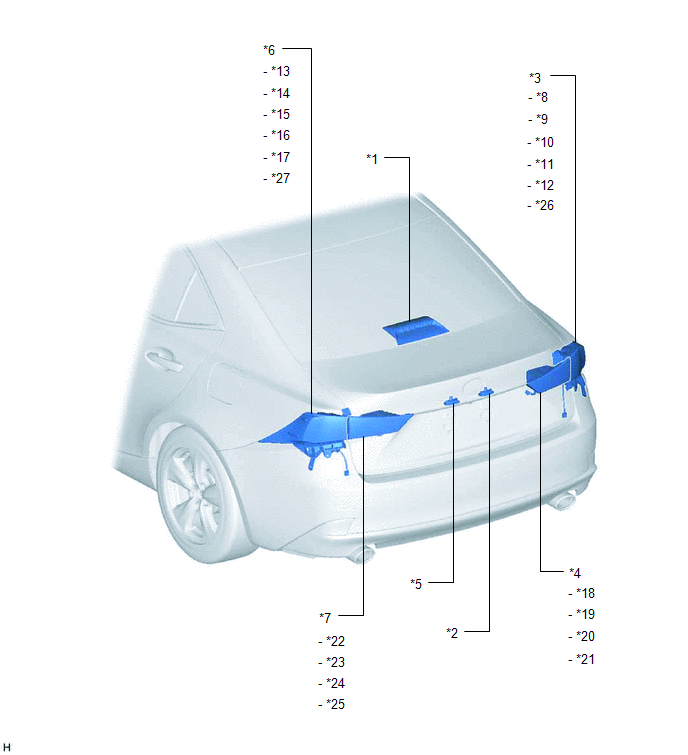

| *1 | CENTER STOP LIGHT ASSEMBLY | *2 | LICENSE PLATE LIGHT ASSEMBLY RH |
| *3 | REAR COMBINATION LIGHT ASSEMBLY RH | *4 | REAR LIGHT ASSEMBLY RH |
| *5 | LICENSE PLATE LIGHT ASSEMBLY LH | *6 | REAR COMBINATION LIGHT ASSEMBLY LH |
| *7 | REAR LIGHT ASSEMBLY LH | *8 | REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY RH |
| *9 | REAR COMBINATION LIGHT LENS AND BODY RH | *10 | TAILLIGHT RH |
| *11 | STOP LIGHT RH | *12 | TURN SIGNAL LIGHT RH |
| *13 | REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH | *14 | REAR COMBINATION LIGHT LENS AND BODY LH |
| *15 | TAILLIGHT LH | *16 | STOP LIGHT LH |
| *17 | TURN SIGNAL LIGHT LH | *18 | REAR LIGHT SOCKET AND WIRE SUB-ASSEMBLY RH |
| *19 | REAR LIGHT LENS AND BODY RH | *20 | TAILLIGHT RH |
| *21 | BACK-UP LIGHT RH | *22 | REAR LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH |
| *23 | REAR LIGHT LENS AND BODY LH | *24 | TAILLIGHT LH |
| *25 | BACK-UP LIGHT LH | *26 | SIDE MARKER LIGHT RH |
| *27 | SIDE MARKER LIGHT LH | - | - |

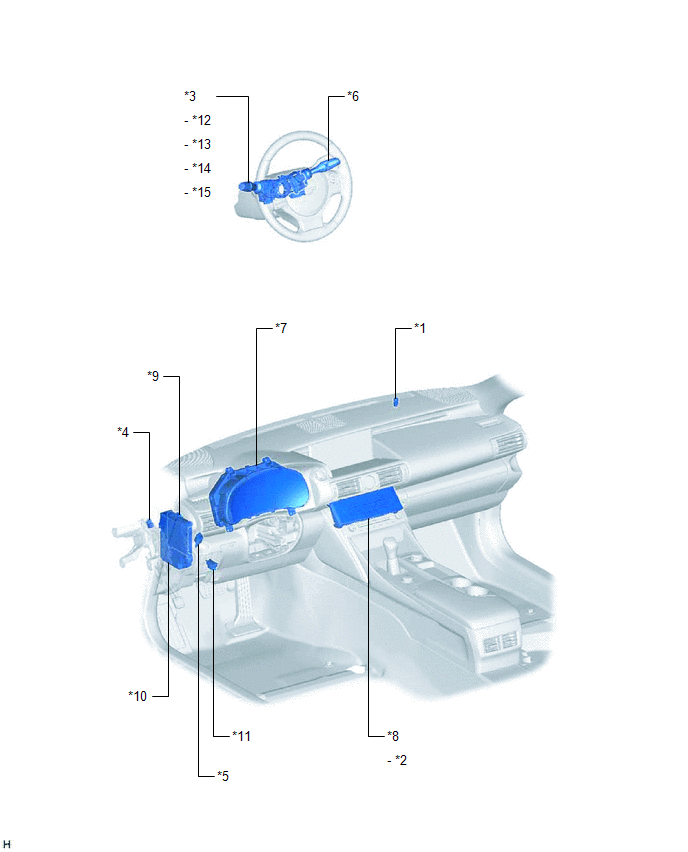

| *1 | AUTOMATIC LIGHT CONTROL SENSOR | *2 | HAZARD WARNING SIGNAL SWITCH |
| *3 | HEADLIGHT DIMMER SWITCH ASSEMBLY | *4 | PARKING BRAKE SWITCH ASSEMBLY |
| *5 | STOP LIGHT SWITCH ASSEMBLY | *6 | WINDSHIELD WIPER SWITCH ASSEMBLY |
| *7 | COMBINATION METER ASSEMBLY | *8 | AIR CONDITIONER CONTROL ASSEMBLY |
| *9 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *10 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - TAIL FUSE - ECU-B FUSE - BKUP LP FUSE |
| *11 | DLC3 | *12 | DIMMER SWITCH |
| *13 | LIGHT CONTROL SWITCH | *14 | TURN SIGNAL SWITCH |
| *15 | FOG LIGHT SWITCH | - | - |
