Components [08/2015 - ]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

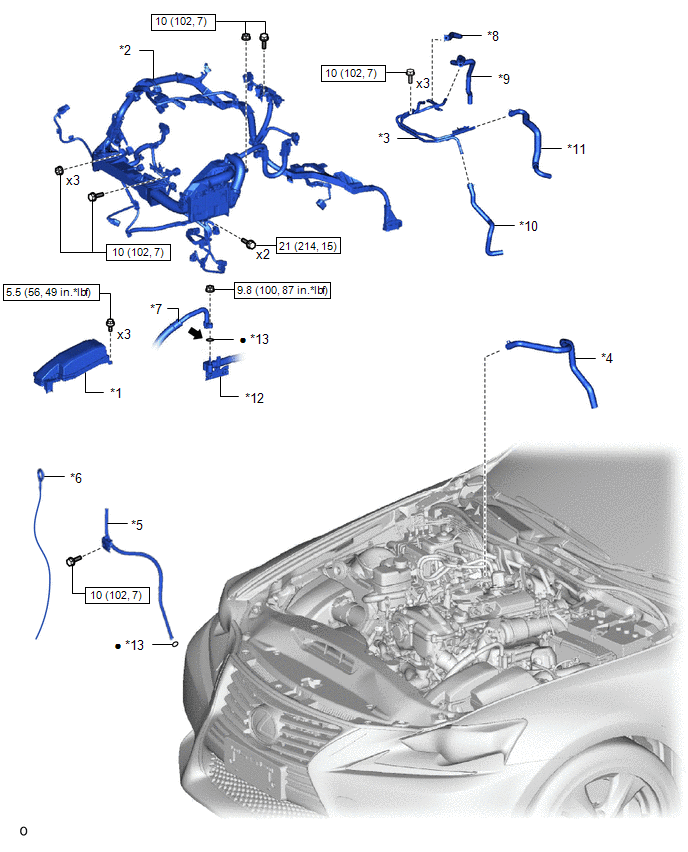

| *1 |
ENGINE ROOM ECU COVER |
*2 |
ENGINE WIRE |
| *3 |
NO. 1 TURBO WATER PIPE |
*4 |
NO. 3 VENTILATION HOSE |
| *5 |
OIL LEVEL DIPSTICK GUIDE |
*6 |
OIL LEVEL DIPSTICK SUB-ASSEMBLY |
| *7 |
SUCTION HOSE |
*8 |
NO. 1 TURBO WATER BY-PASS HOSE |
| *9 |
NO. 2 TURBO WATER BY-PASS HOSE |
*10 |
NO. 3 TURBO WATER BY-PASS HOSE |
| *11 |
NO. 4 TURBO WATER BY-PASS HOSE |
*12 |
SUCTION PIPE SUB-ASSEMBLY |
| *13 |
O-RING |
- |
- |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
 |
Compressor oil ND-OIL 8 or equivalent |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

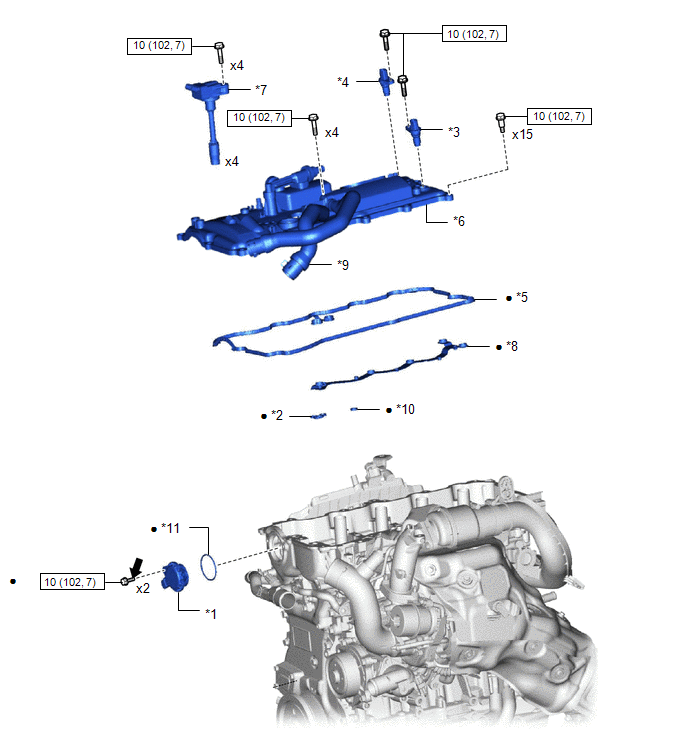

| *1 |
CAM TIMING OIL CONTROL SOLENOID ASSEMBLY |
*2 |
CAMSHAFT BEARING CAP OIL HOLE GASKET |
| *3 |
CAMSHAFT POSITION SENSOR (for Exhaust Side) |
*4 |
CAMSHAFT POSITION SENSOR (for Intake Side) |
| *5 |
CYLINDER HEAD COVER GASKET |
*6 |
CYLINDER HEAD COVER SUB-ASSEMBLY |
| *7 |
IGNITION COIL ASSEMBLY |
*8 |
NO. 2 CYLINDER HEAD COVER GASKET |
| *9 |
NO. 4 VENTILATION HOSE |
*10 |
GASKET |
| *11 |
O-RING |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
|
TOYOTA Genuine Adhesive 1324, Three Bond 1324 or equivalent. |
* |
Precoated part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

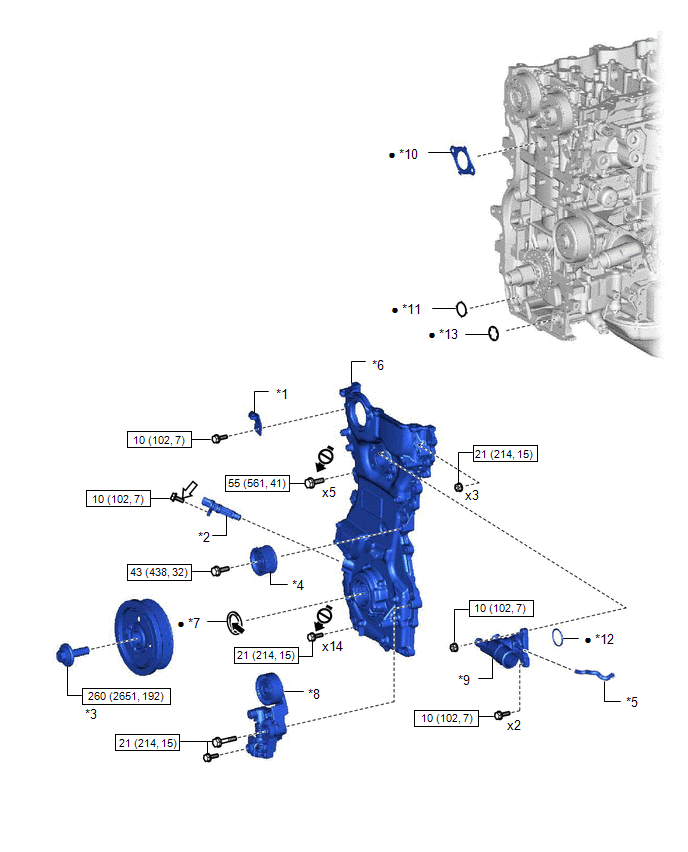

| *1 |
AIR CLEANER BRACKET |
*2 |
CRANK POSITION SENSOR |
| *3 |
CRANKSHAFT PULLEY ASSEMBLY |
*4 |
IDLER PULLEY SUB-ASSEMBLY |
| *5 |
NO. 6 WATER BY-PASS HOSE |
*6 |
TIMING CHAIN COVER ASSEMBLY |
| *7 |
TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL |
*8 |
V-RIBBED BELT TENSIONER ASSEMBLY |
| *9 |
WATER OUTLET SUB-ASSEMBLY |
*10 |
GASKET |
| *11 |
NO. 2 OIL STRAINER GASKET |
*12 |
O-RING |
| *13 |
OIL PUMP GASKET |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
|
MP Grease |
|
TOYOTA Genuine Adhesive 1324, Three Bond 1324 or equivalent. |
| * |
Precoated part |
|
Do not apply lubricants to the threaded parts |
