Components [08/2015 - ]

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

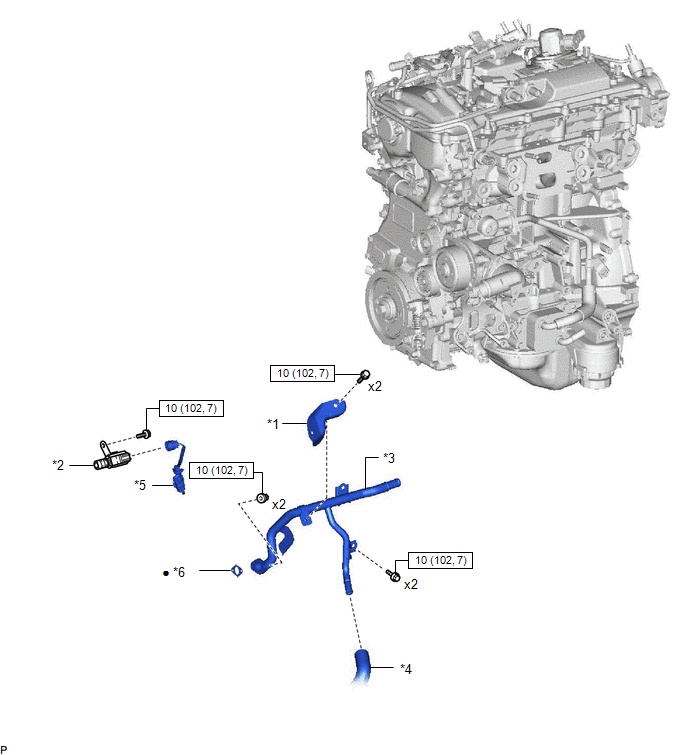

Fig 1: Oil Pressure Switching Valve Replacement Components With Torque Specifications

*1	NO. 3 EXHAUST MANIFOLD HEAT INSULATOR	*2	OIL PRESSURE SWITCHING VALVE ASSEMBLY
*3	WATER BY-PASS PIPE ASSEMBLY	*4	NO. 5 WATER BY-PASS HOSE
*5	NO. 7 ENGINE WIRE	*6	GASKET
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
