Components [10/2016 - ]

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

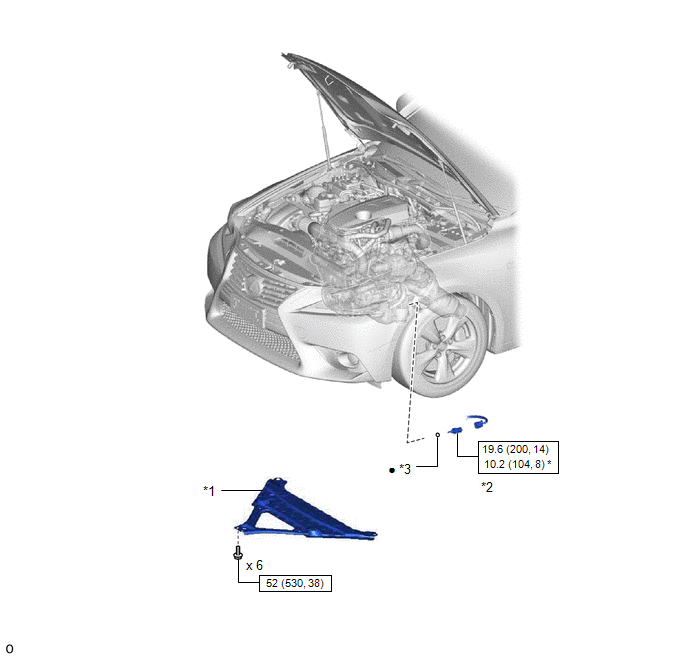

Fig 1: Engine Oil Temperature Sensor Replacement Components With Torque Specifications [10/2016 - ]

*1	FRONT SUSPENSION MEMBER BRACE	*2	TEMPERATURE SENSOR
*3	GASKET	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with ball joint lock nut wrench
•	Non-reusable part	-	-
