Components [08/2015 - ]

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

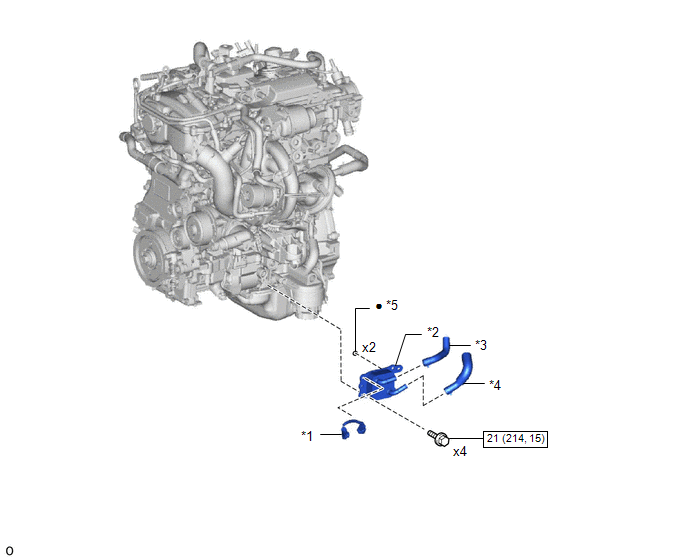

Fig 1: Engine Oil Cooler Replacement Components With Torque Specifications
GTY682965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 5 ENGINE WIRE *2 OIL COOLER ASSEMBLY
*3 NO. 4 WATER BY-PASS HOSE *4 NO. 5 WATER BY-PASS HOSE
*5 O-RING - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
