Removal [04/2013 - 10/2017]: Procedure

WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [04/2013 - 08/2015] , or refer to PRECAUTION [08/2015 - 10/2016] , or refer to PRECAUTION [10/2016 - 10/2017]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [04/2013 - 06/2014] , or refer to INITIALIZATION [06/2014 - 08/2015] , or refer to INITIALIZATION [08/2015 - 10/2016] , or refer to INITIALIZATION [10/2016 - 10/2017]

  3. REMOVE ENGINE ROOM ECU COVER

    Refer to PROCEDURE - Step 2

  4. REMOVE TCM
    1. Disconnect the 2 engine wire connectors from the connector holder.
      GTY470852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw and disconnect the junction connector from the connector holder.

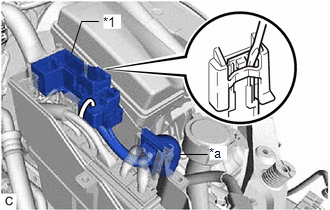

    3. Using a screwdriver, disengage the claw.
      GTY457307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Connector Holder
      *a Grommet
    4. Disconnect the grommet and connector holder from the engine room ECM box.

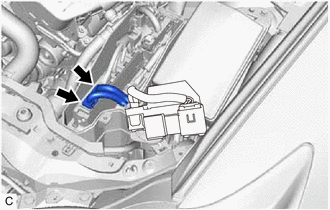

    5. Disconnect the 2 ECM connectors.
      GTY458319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

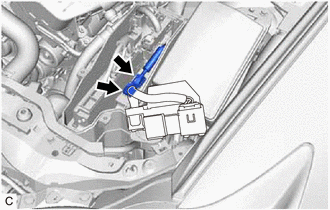

    6. Disconnect the 2 TCM connectors.
      GTY469003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

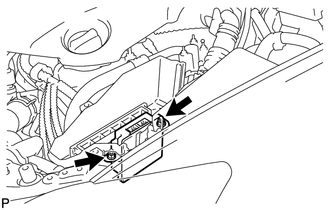

    7. Remove the 2 nuts and TCM from the engine room ECM box.
      GTY108961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If a TCM has been struck or dropped, replace it.

    8. Remove the 4 screws and 2 brackets from the TCM.
      GTY458418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
