Components [08/2015 - ]
WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

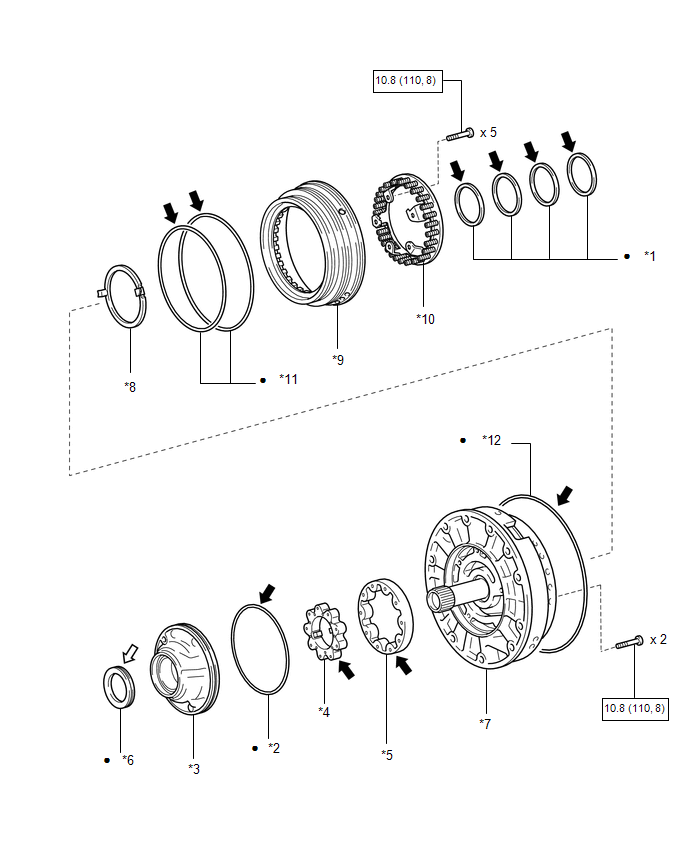

| *1 | CLUTCH DRUM OIL SEAL RING | *2 | FRONT OIL PUMP BODY O-RING |
| *3 | FRONT OIL PUMP BODY SUB-ASSEMBLY | *4 | FRONT OIL PUMP DRIVE GEAR |
| *5 | FRONT OIL PUMP DRIVEN GEAR | *6 | FRONT OIL PUMP OIL SEAL |
| *7 | STATOR SHAFT ASSEMBLY | *8 | STATOR SHAFT CLUTCH DRUM THRUST WASHER |
| *9 | STATOR SHAFT PISTON | *10 | STATOR SHAFT SPRING SUB-ASSEMBLY |
| *11 | O-RING | *12 | OIL PUMP O-RING |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| Toyota Genuine ATF WS | MP grease |
