Disassembly [04/2013 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

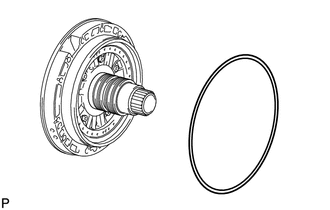

  1. REMOVE OIL PUMP O-RING
    1. Remove the oil pump O-ring from the oil pump assembly.
      GTY465067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. FIX OIL PUMP ASSEMBLY
    1. Place the oil pump assembly on the torque converter assembly.
      GTY456609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Torque Converter Assembly
      *2 Oil Pump Assembly
  3. REMOVE CLUTCH DRUM OIL SEAL RING
    1. Remove the 4 clutch drum oil seal rings from the stator shaft assembly.
      GTY461087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE STATOR SHAFT PISTON
    GTY462980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *1 Stator Shaft Spring Sub-assembly
    *2 Stator Shaft Piston
    1. Using "TORX" socket wrench T30, remove the 5 bolts, stator shaft spring sub-assembly and stator shaft piston.
    2. Remove the 2 O-rings from the stator shaft piston.
  5. REMOVE STATOR SHAFT CLUTCH DRUM THRUST WASHER
    1. Remove the stator shaft clutch drum thrust washer from the stator shaft assembly.
      GTY466186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Stator Shaft Clutch Drum Thrust Washer
  6. INSPECT STATOR SHAFT SPRING SUB-ASSEMBLY

    See step  1

  7. REMOVE STATOR SHAFT ASSEMBLY
    1. Using "TORX" socket wrench T30, remove the 2 bolts and stator shaft assembly from the front oil pump body sub-assembly.
      GTY467058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE OIL PUMP ASSEMBLY
    1. Remove the front oil pump body sub-assembly from the torque converter assembly.
  9. REMOVE FRONT OIL PUMP BODY O-RING
    1. Remove the front oil pump body O-ring from the front oil pump body sub-assembly.
      GTY463892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Oil Pump Body O-ring
  10. INSPECT STATOR SHAFT ASSEMBLY

    See step  3

  11. INSPECT FRONT OIL PUMP BODY SUB-ASSEMBLY

    See step  2

  12. INSPECT CLEARANCE OF OIL PUMP ASSEMBLY

    See step  4

  13. REMOVE FRONT OIL PUMP DRIVE GEAR
    1. Remove the front oil pump drive gear.
      GTY467075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Oil Pump Drive Gear
  14. REMOVE FRONT OIL PUMP DRIVEN GEAR
    1. Remove the front oil pump driven gear.
      GTY458036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Oil Pump Driven Gear
  15. REMOVE FRONT OIL PUMP OIL SEAL
    1. Using a screwdriver, pry out the front oil pump oil seal.
      NOTE:

      Do not damage the bushing and oil pump assembly.

      GTY471022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Protective Tape

      HINT:

      Wrap the tip of the screwdriver with protective tape.
