Installation [04/2013 - 08/2015]: Procedure

WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL KICK DOWN SWITCH ASSEMBLY
    1. Install the kick down switch assembly to the body with the nut and 2 bolts.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

    2. Connect the clamp to the kick down switch assembly.
    3. Connect the kick down switch assembly connector.

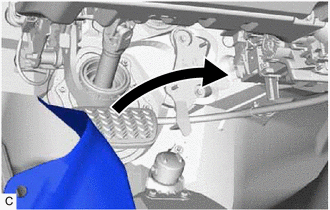

    4. Install the floor carpet to the original position.
      GTY463925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Connect the clip to the body.
  2. INSTALL ACCELERATOR PEDAL ASSEMBLY

    Refer to INSTALLATION [04/2013 - 10/2017]

  3. INSTALL FRONT NO. 1 CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 9

  4. INSTALL INSTRUMENT PANEL FINISH PANEL END LH

    Refer to PROCEDURE - Step 13
